(D.50.C.60[9]) - DUAL WHEELS MOUNTING KIT - PIN XXXXXX AND AFTER

Запчасти Case IH AFX8010 (D.50.C.60[9]) - DUAL WHEELS MOUNTING KIT - PIN XXXXXX AND AFTER D - Travel

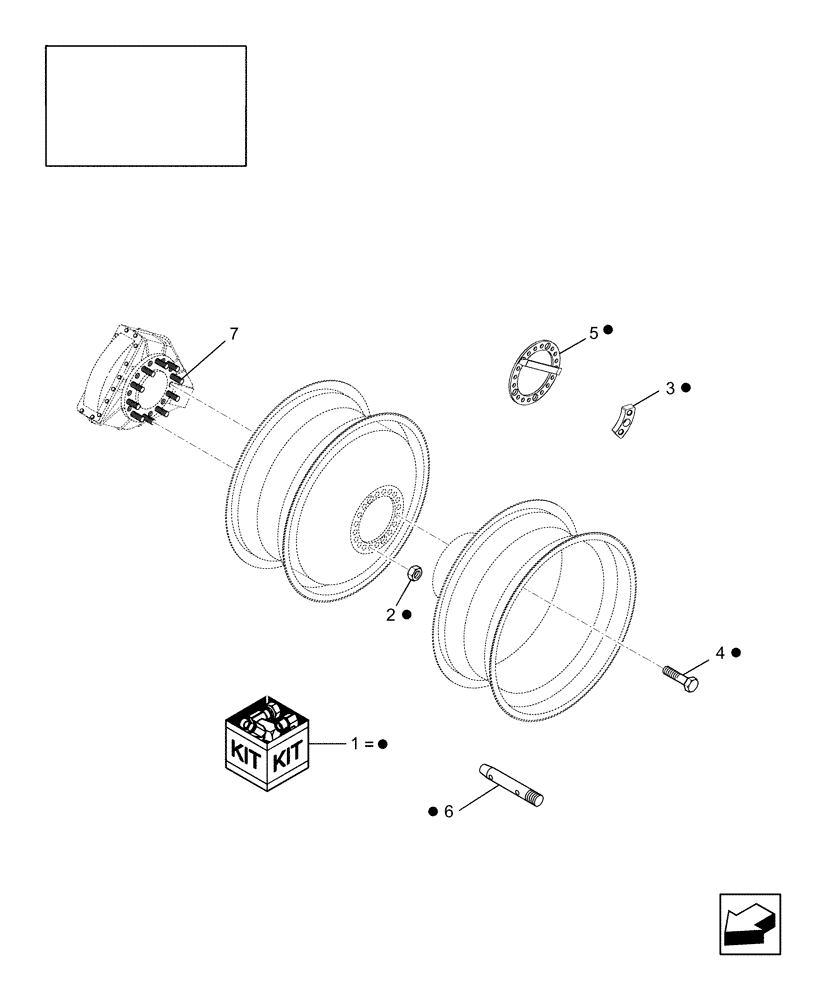

Схема запчастей Case IH AFX8010 - (D.50.C.60[9]) - DUAL WHEELS MOUNTING KIT - PIN XXXXXX AND AFTER D - Travel
4
3
2
7
6
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87283504

KIT

Fixation, Dual Wheels, Includes Ref. 2 thru 6

1шт.

2

336945

WHEEL NUT,M22 x 1.5, Cl 10

20шт.

3

87283501

SPACER

Plate, Wheel Mounting

10шт.

4

87367550

FLANGE BOLT,Hex, M22 x 1.5 x 95mm, Cl 12.9

20шт.

5

87280385

SPACER

2шт.

6

87283521

STUD,M22 x 180

Starter, Drive Wheel

2шт.

7

87282493

STUD,M22 x 1.5 x 84mm

20шт.

Выбрано товаров: 7
