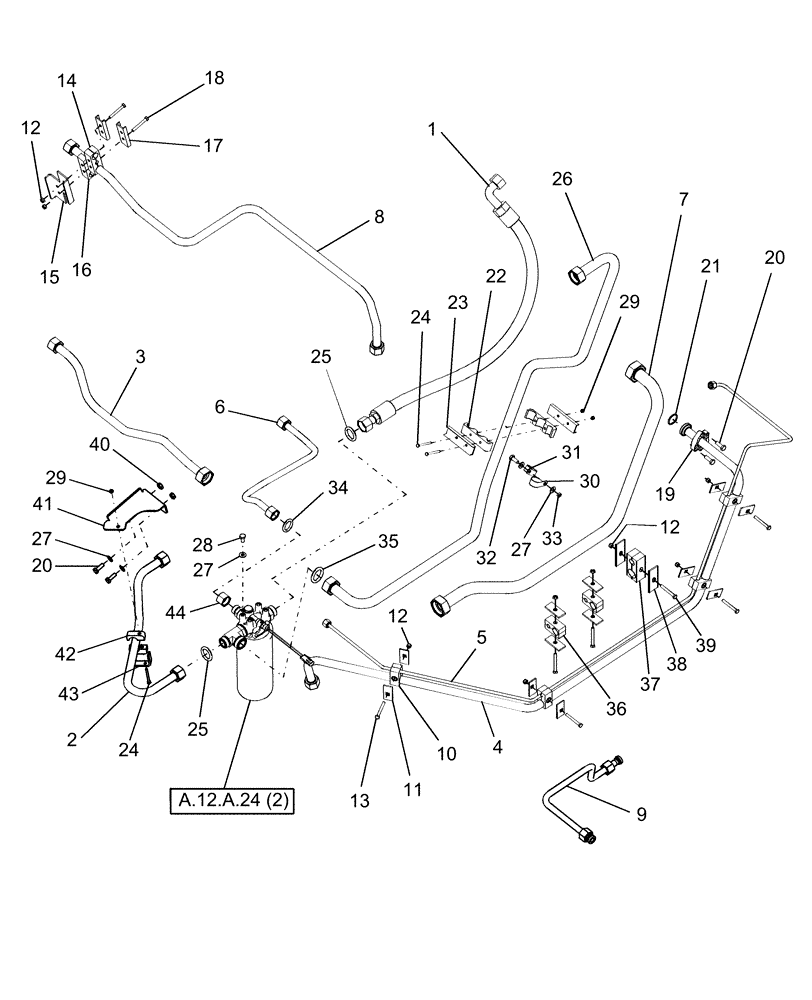

Запчасти Case IH AFX8010 (A.10.A.36[2A]) - HYDRAULIC LINES A - Distribution Systems

1

87283082

FLEXIBLE HOSE

Charge -, Serial Range: Pump-Filter

1шт.

2

87282543

HYD TUBE

Charge -, Serial Range: Filter-Valve

1шт.

3

86996178

HYD TUBE,1" OD

Gear Flow to Filter

1шт.

4

87105738

HYD TUBE,1" OD

PFC Pump to Main Valve, Serial Range: -HAJ105757

1шт.

4

87284927

HYD TUBE,1" OD

PFC Pump to Main Valve, Start Serial: HAJ105758

1шт.

5

87105739

HYD TUBE,0.375" OD

Load Sensing to PFC Pump, Serial Range: -HAJ105757

1шт.

5

87284930

HYD TUBE,0.375" OD

Load Sensing to PFC Pump, Start Serial: HAJ105758

1шт.

6

87109047

HYD TUBE,0.75" OD

Charge Bypass, Serial Range: -HAJ105757

1шт.

7

87106605

HYD TUBE,1.50" OD

Filter to PFC Pump, Serial Range: -HAJ105757

1шт.

7

87284926

HYD TUBE

Filter to PFC Pump, Start Serial: HAJ105758

1шт.

8

87105709

HYD TUBE,1" OD

Hydro Cooler Inlet, Serial Range: -HAJ105757

1шт.

8

87284948

HYD TUBE,1" OD

Hydro Cooler Inlet, Start Serial: HAJ105758

1шт.

9

87000881

HYD TUBE,20 mm OD x 394, 296.1 mm L

Spreader Valve Pressure, Serial Range: -HAJ105757

1шт.

9

87284928

HYD TUBE,0.75" OD

Spreader Valve Pressure, Start Serial: HAJ105758

1шт.

10

87000142

CLAMP,2 Hoses

Tube, Hydraulic

4шт.

11

87000230

PLATE

Hose Clamp

12шт.

12

832-46408

NUT,M8 x 1.25, Cl 8

11шт.

13

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

6шт.

14

86999893

CLAMP

Tube, Hydraulic

1шт.

15

87107783

BRACKET

Hydraulic Clamp

1шт.

16

87000734

CLAMP

Tube, Hydraulic

1шт.

17

87000242

CHANNEL

Clamp Back-up

2шт.

18

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

4шт.

19

86980728

COLLAR CLAMP

2шт.

20

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

21

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

22

455533

CLAMP

Tube

2шт.

23

87283294

CHANNEL

Clamp Back-up

2шт.

24

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

25

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ORF, 1-7/16"

2шт.

26

87282544

HYD TUBE

Charge, Serial Range: Filter-Manifold

1шт.

27

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

28

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

29

353308

NUT,M6 x 1.0, Cl 8

1шт.

30

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

31

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

32

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

1шт.

33

9706690

NUT,M8 x 1.25, Cl 8

1шт.

34

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

35

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

36

87000146

CLAMP

2шт.

37

87283573

CLAMP

1шт.

38

87000231

PLATE

Hose Clamp

2шт.

39

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

1шт.

40

100016

NUT,M10 x 1.5, Cl 8

3шт.

41

87284346

SUPPORT

Clamp

1шт.

42

457546

CLAMP

2шт.

43

743318

SUPPORT

1шт.

44

9847689

CAP,1-3/16" - 12 ORFS

Replaces Ref. 6, Start Serial: HAJ105758

2шт.
