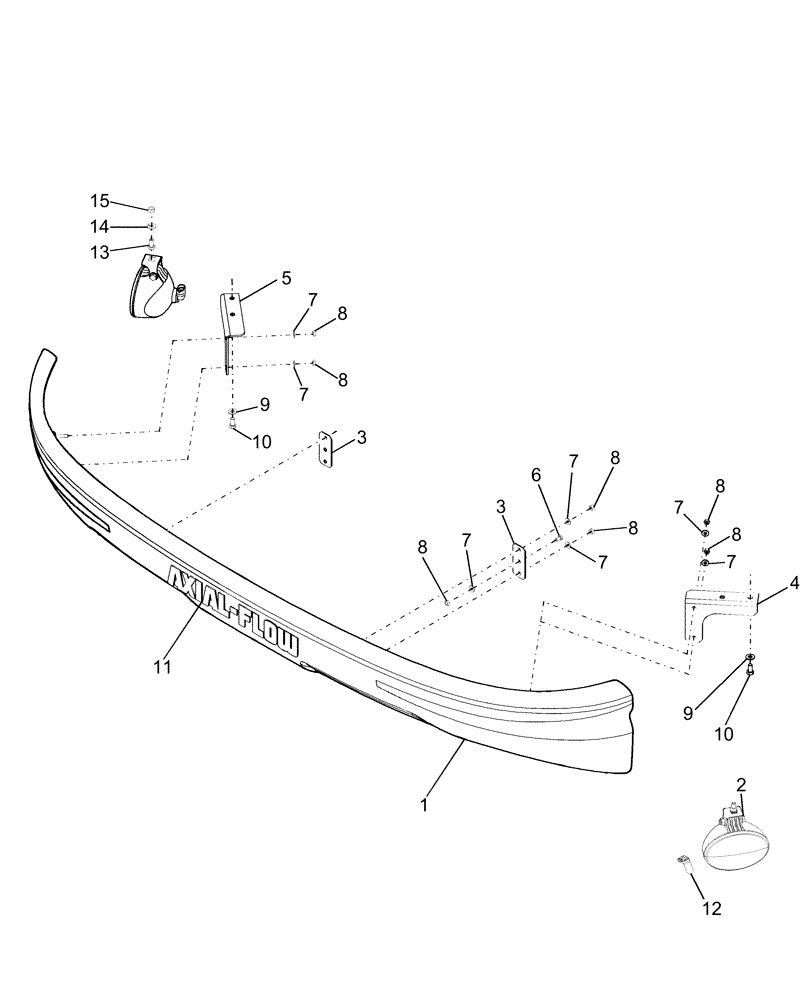

Запчасти Case IH AFX8010 (E.34.A.78[1]) - CAB SKIRT - NA E - Body and Structure

1

87107867

PANEL

Includes: Ref. 11

1шт.

2

87001315

WORK LAMP,Halogen, 12V, 37.5W, Clear

Includes: Ref. 12 thru 15

2шт.

3

87109113

MOUNTING PLATE

2шт.

4

87108879

BRACKET

LH

1шт.

5

87108881

BRACKET

RH

1шт.

6

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

10шт.

8

9706755

NUT,M6, Cl 8

10шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

10

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

11

1987144C1

DECAL

1шт.

12

87107077

BULB,Halogen, 12V, 37.5W

2шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

15

9706690

NUT,M8 x 1.25, Cl 8

2шт.
