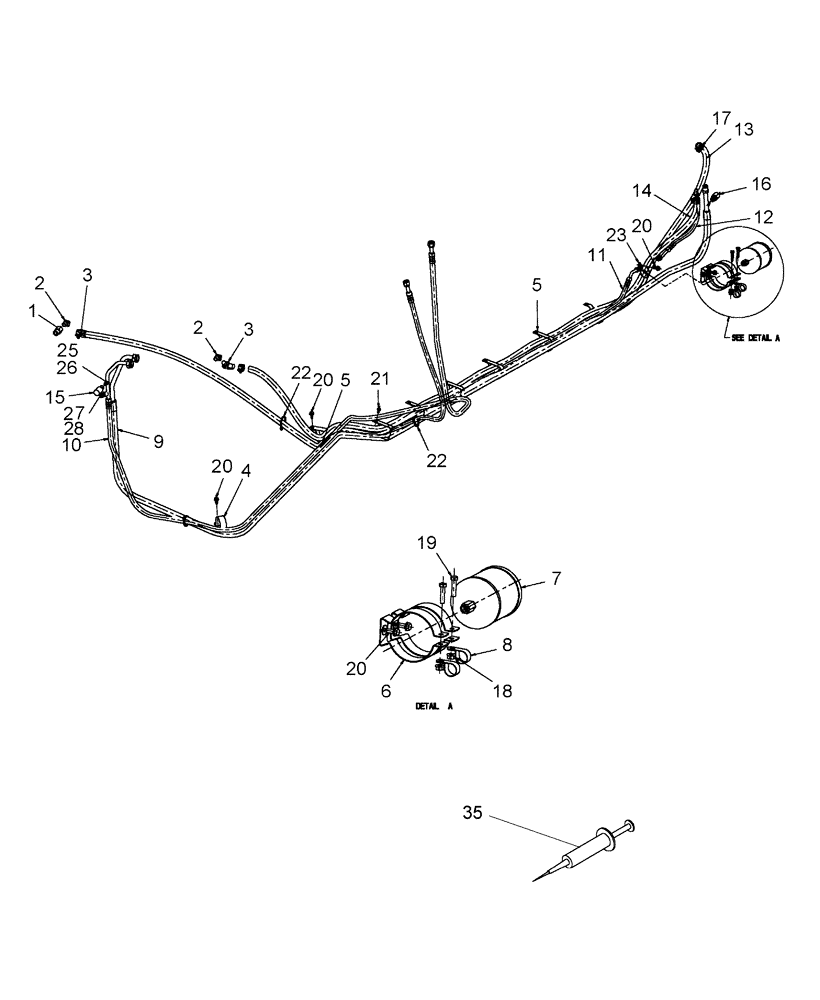

Запчасти Case IH AFX8010 (E.40.D.37[1]) - A/C & HEATER HOSES E - Body and Structure

1

84334474

FITTING,1/2"-14 M x 3/8"-18 Fem

1шт.

2

3905214

ELBOW

45 Degree

2шт.

3

83961305

VALVE

2шт.

4

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

5

87000226

HOSE CLAMP

7шт.

6

87105841

BRACKET

Clamp

2шт.

7

87105840

RECEIVER-DRYER

1шт.

8

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

9

87109381

HOSE

To Suction Port on Compressor, Serial Range: -HAJ106401

1шт.

9

87337664

HOSE

A/C, Cab To Compressor Suction; L = 583mm, Start Serial: HAJ106401

1шт.

10

87548074

HOSE

To Discharge Port on Compressor

1шт.

11

86997294

A/C HOSE

1шт.

12

87109562

FLEXIBLE HOSE,7.9mm ID x 475mm L

L = 475mm

1шт.

13

87106553

HEATER HOSE,15.50 mm ID x 6100.00 mm

Return

1шт.

14

87106556

HEATER HOSE,15.50 mm ID x 5000.00 mm

Supply

1шт.

15

87000227

SWITCH, A/C HIGH PRE

1шт.

16

87000228

SWITCH, A/C LOW PRES

1шт.

17

87000223

HOSE CLAMP,22mm ID Static x 15mm W, Spring Type

4шт.

18

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

19

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

20

86978776

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

5шт.

21

412093

SELF-TAP SCREW

M6 x 12

1шт.

22

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

CABLE STRAP

3шт.

23

87000220

HOSE CLAMP

1шт.

24

87589867

FLUID

Dye, Leak Detection

1шт.

25

86511147

CONTROL VALVE

VALVE, CHARGE HIGH SIDE

1шт.

26

86511148

CAP

1шт.

27

86511146

VALVE,Shrader

Valve

1шт.

28

86511149

CAP

1шт.
