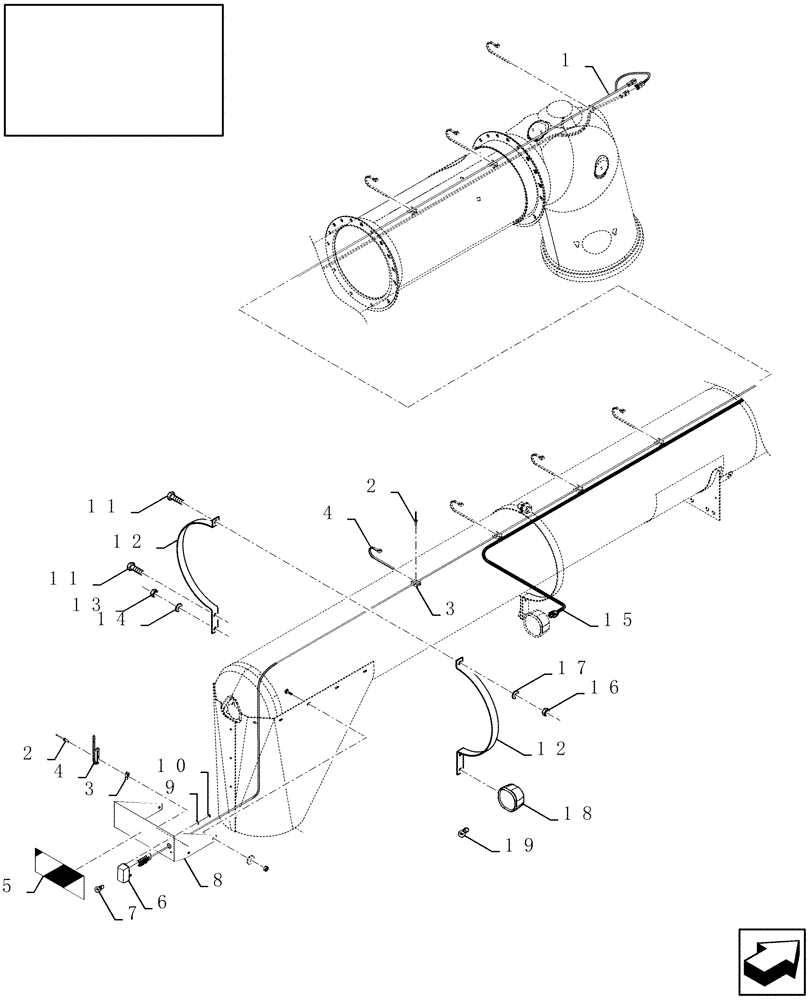

Запчасти Case IH AFX8010 (E.60.A.02[4]) - SIGNAL PLATES FOR UNLOADING TUBE E - Body and Structure

1

86610718

WIRE HARNESS

Signal Plates For Unloading Tube

1шт.

2

325911

RIVET,Pop, 4.75mm OD x 7.4mm L

2шт.

3

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

4

86566989

CABLE TIE,208mm L

CABLE STRAP

2шт.

5

84441358

DECAL

1шт.

6

84429842

LAMP

(7)

1шт.

7

86616250

BULB,12V, 5W

1шт.

8

84441194

SUPPORT

1шт.

9

140014

WASHER,M5 x 10mm OD x 1mm Thk

2шт.

10

43440

LOCK NUT,M5 x .8, Cl 8

2шт.

11

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

12

84072630

CLAMP BRACKET

2шт.

13

9706690

NUT,M8 x 1.25, Cl 8

1шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

15

86900852

WIRE HARNESS

1шт.

16

100016

NUT,M10 x 1.5, Cl 8

2шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

18

84067907

WORK LAMP,Halogen, 12V, 37.5W, Clear

(19)

1шт.

19

9847313

BULB,#894, 12V, 37.5W

1шт.
