(K.40.C.52.52[6]) - KIT, ANTI-WIND BEARING

Запчасти Case IH AFX8010 (K.40.C.52.52[6]) - KIT, ANTI-WIND BEARING K - Crop Processing

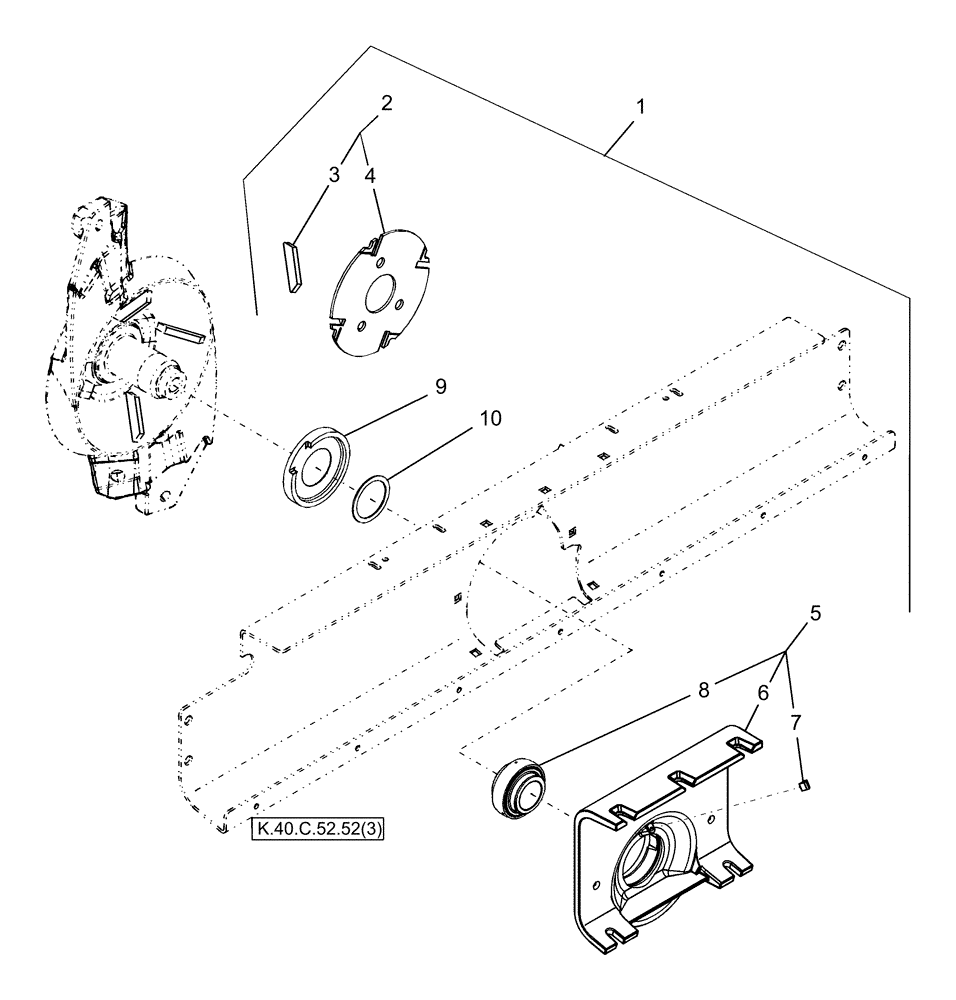

Схема запчастей Case IH AFX8010 - (K.40.C.52.52[6]) - KIT, ANTI-WIND BEARING K - Crop Processing
1
4
9
k.40.c.52.52(3)
3
5
10
8
6
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87319986

BEARING ASSY

Anti-Wind Bearing

1шт.

2

87317092

HUB

Rework

1шт.

3

87337818

BAR

Inhibitor, Welded

4шт.

3

87398771

BAR

Rotor, Antiwind

4шт.

4

87316965

PLATE

Weld Fixture

1шт.

5

87324051

BEARING ASSY

Assembly

1шт.

6

NSS

NOT SOLD SEPARAT

Housing

1шт.

7

87020437

ADAPTER,45 Degree, 1/4"-1/8 NPTF

1шт.

8

87324171

BALL BEARING,50.8mm ID x 100mm OD x 25mm W

Has 2 Lube Holes and must be used as components of 87324051

1шт.

9

87323577

RING

1шт.

10

87284474

SHIM,51.18mm ID x 59.7mm OD x 1mm Thk

3шт.
