(K.60.B.42[3]) - KITS, SLOW DOWN - ELEVATOR & GRAIN TANK

Запчасти Case IH AFX8010 (K.60.B.42[3]) - KITS, SLOW DOWN - ELEVATOR & GRAIN TANK K - Crop Processing

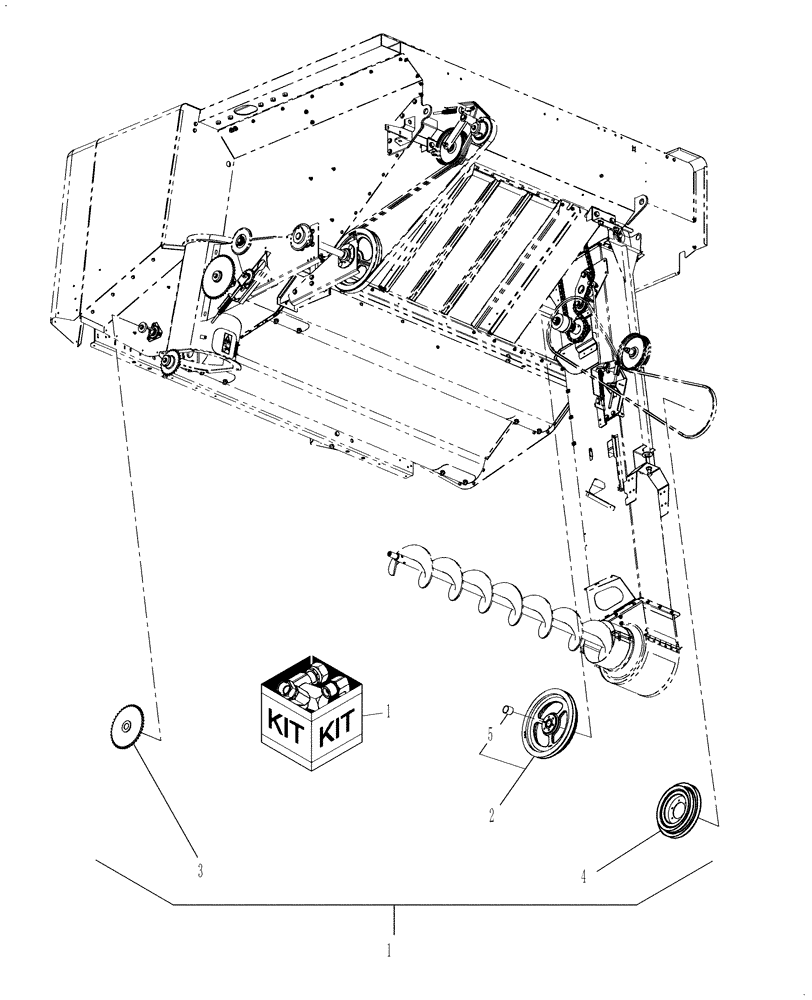

Схема запчастей Case IH AFX8010 - (K.60.B.42[3]) - KITS, SLOW DOWN - ELEVATOR & GRAIN TANK K - Crop Processing
4
2
5
1
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84084386

DIA KIT, HARVESTER

Kit, Slow Down - Elevator & Grain Tank, Includes Ref. 2, 3,4, & 5

1шт.

1

87753906

DIA KIT, HARVESTER

Kit, Slow Down - Elevator; Includes Ref. 2,4, & 5

1шт.

2

86976480

PULLEY

Driven; Includes: Ref. 5

1шт.

3

84069677

SPROCKET,43T

1шт.

4

86999007

PULLEY,335mm OD

1шт.

5

80535318

BUSHING

1шт.
