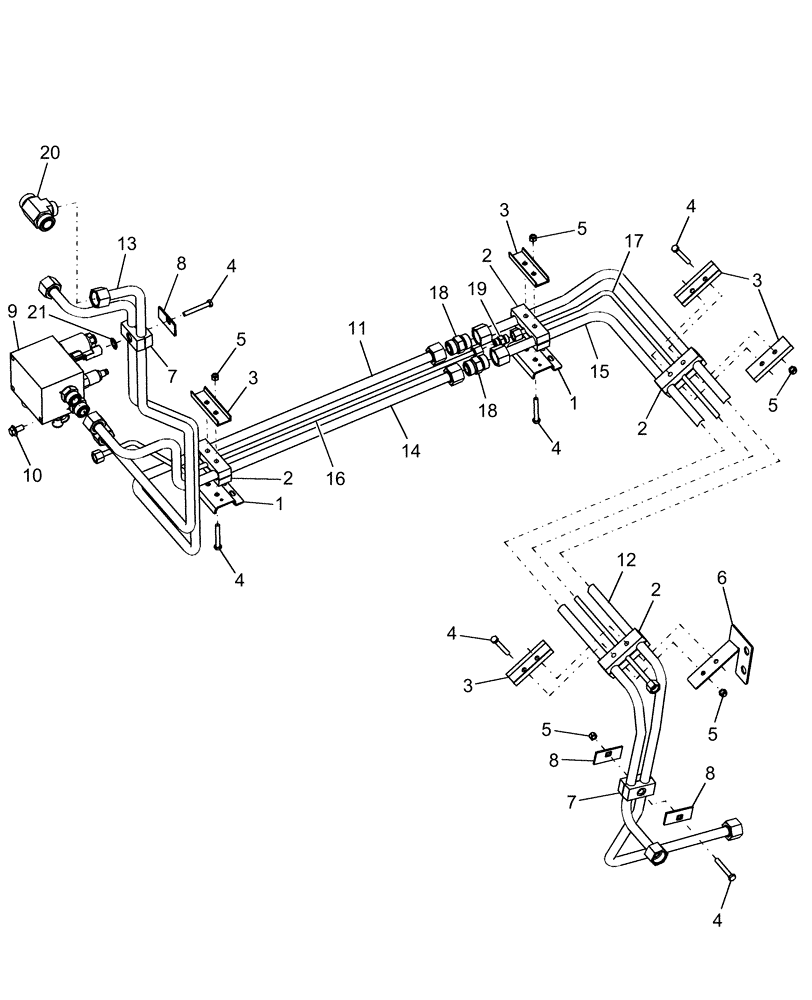

Запчасти Case IH AFX8010 (K.62.B.05[2]) - HYDRAULIC TUBES - ENGINE COMPARTMENT, CLEANING FAN K - Crop Processing

1

87109755

BRACKET

Clamp, Tube

2шт.

2

86998883

CLAMP

Hydraulic Tube

4шт.

3

87000242

CHANNEL

Clamp Back-Up

5шт.

4

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

10шт.

5

832-46408

NUT,M8 x 1.25, Cl 8

9шт.

6

87000942

BRACKET

Clamp

1шт.

7

87000140

CLAMP,Tube, 19.05mm

Hydraulic Tube

2шт.

8

87000230

PLATE

Clamp, Hose

3шт.

9

87107189

HYDRAULIC VALVE

Cleaning Fan

1шт.

10

274249

BOLT,Hex, M10 x 20mm

3шт.

11

87000680

HYD TUBE,0.75" OD

Rotary Air Screen Motor Pressure (B)

1шт.

12

87000681

HYD TUBE,0.75" OD

Rotary Air Screen Motor Pressure (A), Serial Range: -HAJ105757

1шт.

12

87284929

HYD TUBE,0.75" OD

Rotary Air Screen Motor Pressure (A), Start Serial: HAJ105758

1шт.

13

87000682

HYD TUBE,0.75" OD

Cleaning Fan Valve Return

1шт.

14

87000683

HYD TUBE,0.75" OD

Cleaning Fan Valve Pressure (B)

1шт.

15

87105711

HYD TUBE,0.75" OD

Cleaning Fan Valve Pressure (A)

1шт.

16

87106690

HYD TUBE,0.375" OD

Cleaning Fan Drain (B)

1шт.

17

87000880

HYD TUBE,10 mm OD x 1605, 220.6 mm L

Cleaning Fan Drain (C)

1шт.

18

84100407

UNION,1-3/16"-12 ORFS

2шт.

19

84431546

UNION,11/16"-16 ORFS

1шт.

20

87000837

TEE

1шт.

21

87012484

SNAP RING,#31, Ext

1шт.
