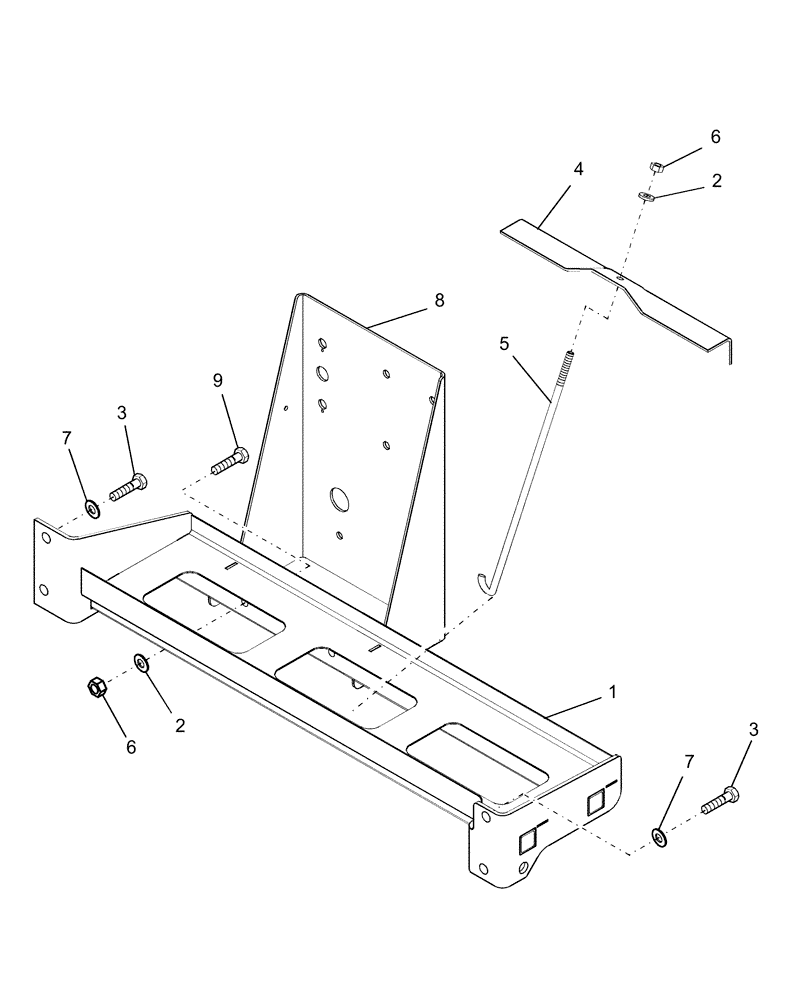

Запчасти Case IH AFX8010 (A.30.A.83[2]) - BATTERY TRAY A - Distribution Systems

1

87106388

BATTERY TRAY

Without Shield, Years: -15-AUG-03

1шт.

1

87280323

BATTERY TRAY

Battery, with welded on Shield, Start Year: 15-AUG-03

1шт.

1

87282073

BATTERY TRAY

Battery, with Bolt on Shield, Start Serial: HAJ103201

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

3

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

4

87109059

BRACKET

Replaces 87106393, Start Year: 15-AUG-03

1шт.

5

87109057

BOLT

J Battery Hold Down

1шт.

6

9706690

NUT,M8 x 1.25, Cl 8

1шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

8

87282075

SHIELD

1шт.

9

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.
