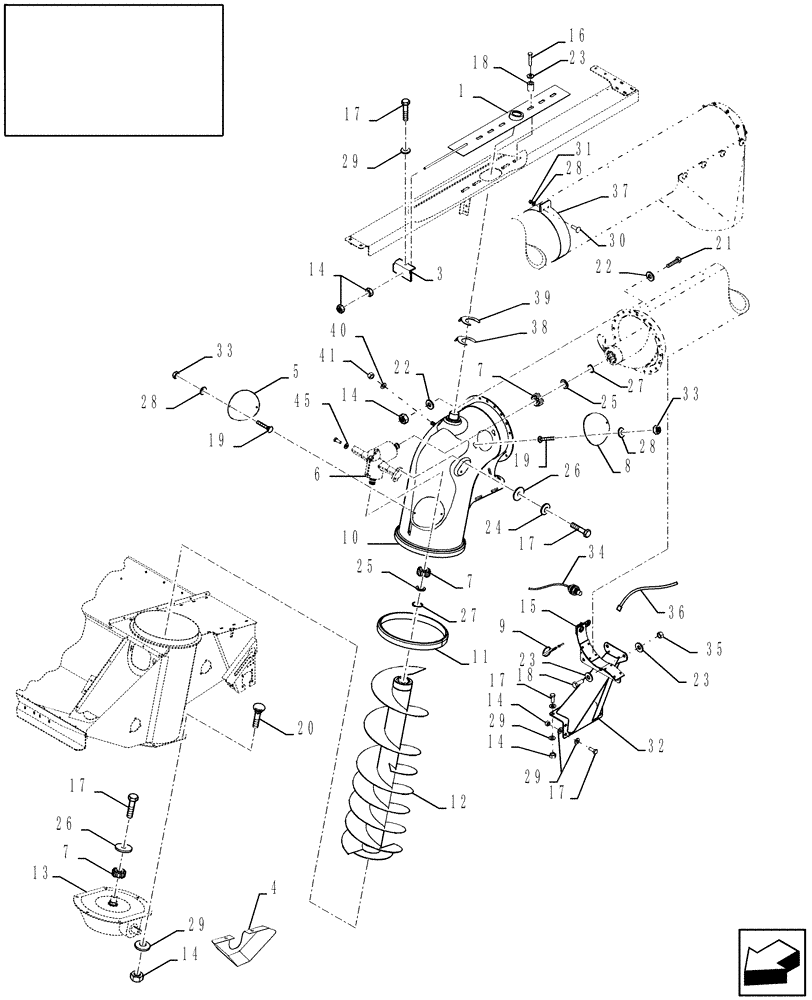

Запчасти Case IH AFX8010 (K.72.B.53[1]) - VERTICAL UNLOADING AUGER K - Crop Processing

1

86998599

PLATE

1шт.

2

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

1шт.

3

84072832

BRACKET

1шт.

4

86976181

SHIELD

1шт.

5

84073388

COVER

1шт.

6

87331084

GEARBOX

6шт.

87331084R

REMAN-GEARBOX

AFX8010 PIN HAJ105105 Thru HAJ199999

6шт.

87331084C

CORE-GEARBOX

Return Number

1шт.

7

87011705

HUB,21T

3шт.

8

84320188

COVER

1шт.

9

87106279

PIN,6.4mm OD

1шт.

10

87044522

ELBOW

1шт.

11

86558526

BUSHING,408mm ID x 440mm OD x 40mm OAL

1шт.

12

84447940

AUGER

Standard & Perforated

1шт.

12

87733266

AUGER

Extended Wear

1шт.

13

84320052

GEARBOX

1шт.

84320052R

REMAN-GEARBOX

AFX8010 PIN HAJ105105 THRU HAJ199999 (3/03 - 9/06)

1шт.

84320052C

CORE-GEARBOX

Return Number

1шт.

14

9706685

NUT,M12 x 1.75, Cl 8

33шт.

15

87552526

SUPPORT ASSY.

1шт.

16

86577946

BOLT,Hex, M16 x 80mm x 10.9

6шт.

17

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

11шт.

18

87284863

SPACER,38mm OD x 46mm OAL

6шт.

19

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

20

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

21

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

19шт.

22

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

38шт.

23

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

10шт.

24

86585939

BELLEVILLE WASHER,M12 Bolt Size x 32mm OD x 3.5mm Thk

3шт.

25

84072793

WASHER,35.5mm ID x 58mm OD x 5mm Thk

2шт.

26

327084

WASHER,13mm ID x 52mm OD x 5mm Thk

3шт.

27

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

28

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

29

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

19шт.

30

86512443

CARRIAGE BOLT,Sht Nk, M8 x 35mm, Cl 8.8, Full Thd

2шт.

31

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

32

87107155

SUPPORT

1шт.

33

9706690

NUT,M8 x 1.25, Cl 8

4шт.

34

84058863

SENSOR

Vertical Unloading Auger Position

1шт.

35

100020

NUT,M16 x 2.0, Cl 8

2шт.

36

86566989

CABLE TIE,208mm L

CABLE STRAP

1шт.

37

87284878

SECURING BAND

1шт.

38

87627724

SHIM,1.7mm Thk

1шт.

39

87620925

SHIM,3.2mm Thk

1шт.

40

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

41

100016

NUT,M10 x 1.5, Cl 8

1шт.
