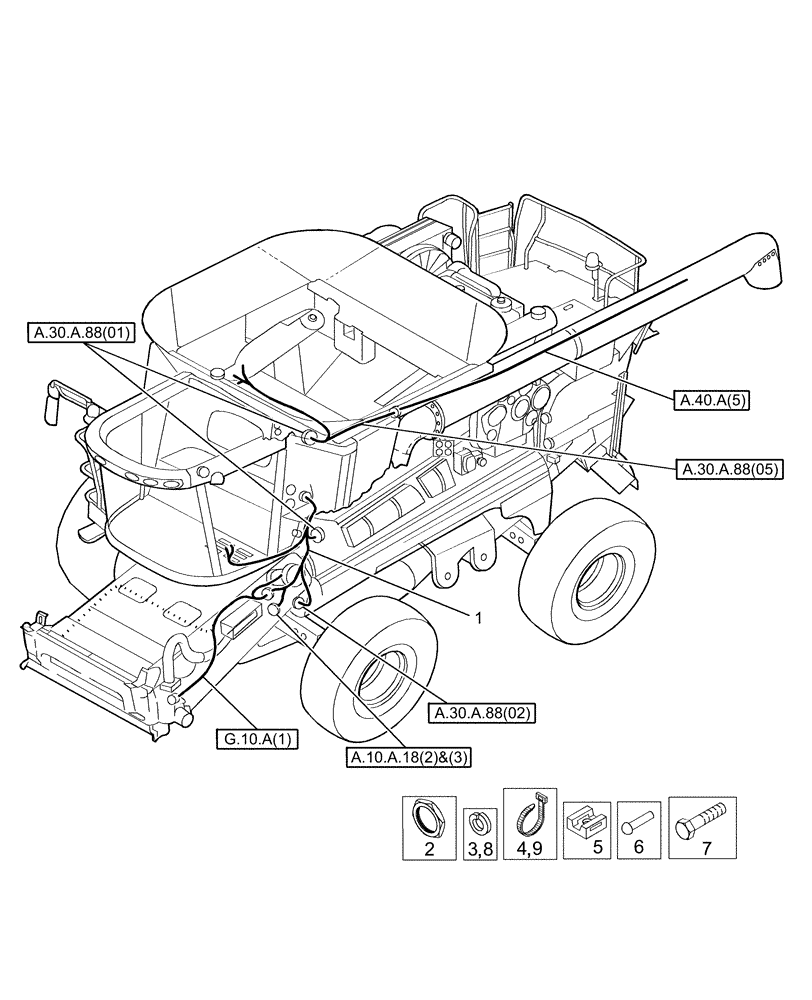

Запчасти Case IH AFX8010 (A.30.A.88[08]) - WIRE HARNESS, MAINFRAME, FRONT A - Distribution Systems

1

87107999

WIRE HARNESS

Mainframe, Front

1шт.

1

87326650

WIRE HARNESS

Mainframe, Front, Start Year: 01-JAN-06

1шт.

2

86619907

NUT,1.6875"-18

1шт.

3

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

1шт.

4

86566989

CABLE TIE,208mm L

CABLE STRAP 7.5"

1шт.

5

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Base, Wire Tie

1шт.

6

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

9

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP 11"

1шт.
