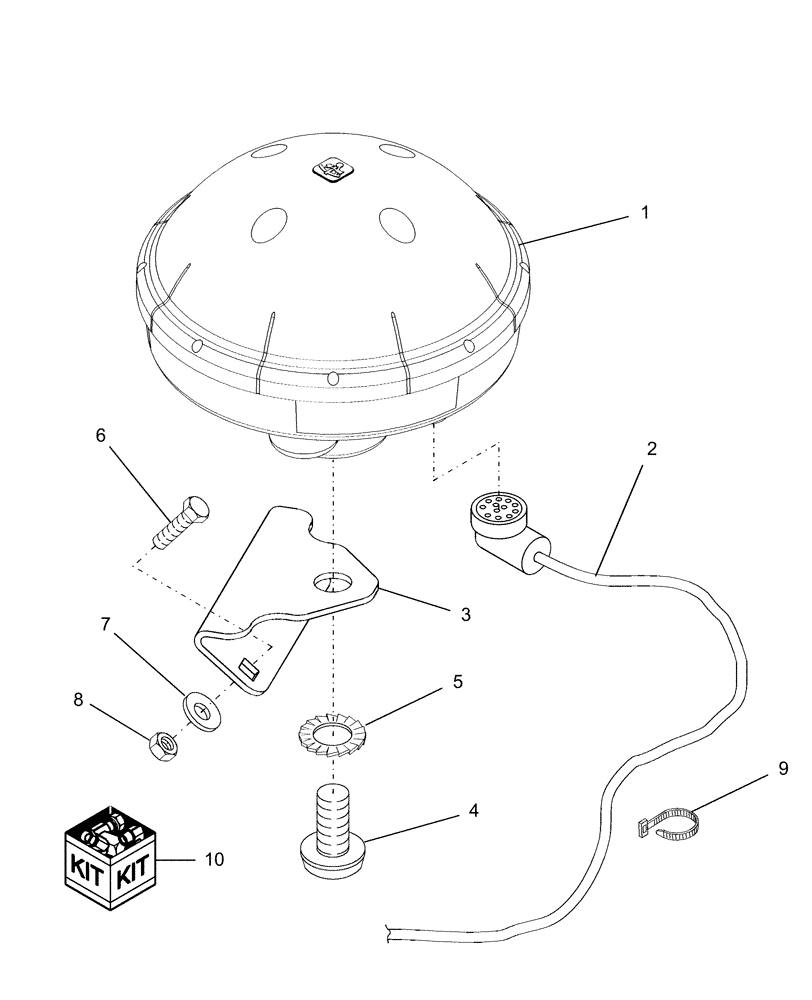

Запчасти Case IH AFX8010 (A.50.A.96.88[01]) - GPS A - Distribution Systems

1

87283829

AFS PARTS & PACKAGES

Antenna, AFS 110, Serial Range: -HAJ106566

1шт.

1

87350411

ANTENNA

AFS 110, Start Serial: HAJ106567

1шт.

1

84574273R

REMAN ELECT CONTROL

AFX8010 AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999, AFS 110, Start Serial: HAJ106567 (3/03-9/06), Reman for New PN 87350411

1шт.

1

84574273C

CORE-ELECTRONIC CONT

Return Number

1шт.

1

87000727

AFS PARTS & PACKAGES

Antenna, WAAS Receiver, Serial Range: -HAJ105701

1шт.

1

87491749R

REMAN ELECT CONTROL

AFX8010 AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999, Antenna, WAAS Receiver, Serial Range: -HAJ105701 (3/03-9/06), Reman for New PN 87000727

1шт.

1

87491749C

CORE-ELECTRONIC CONT

Return Number

1шт.

1

87472720

ANTENNA

WAAS Receiver, Start Serial: HAJ105701

1шт.

1

87491749R

REMAN ELECT CONTROL

AFX8010 AXIAL-FLOW COMBINE - PIN HAJ105105 THRU HAJ199999, WAAS Receiver, Start Serial: HAJ105701 (3/03-9/06), Reman for New PN 87472720

1шт.

1

87491749C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

87281699

CABLE

Antenna

1шт.

3

87109748

SUPPORT

1шт.

4

87106351

HEX SOC SCREW,BTN HD, 5/8" - 11 x 3/4"

1шт.

5

86977690

LOCK WASHER,Ext Tooth, 5/8"

1шт.

5

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

8

9706690

NUT,M8 x 1.25, Cl 8

1шт.

9

86566989

CABLE TIE,208mm L

CABLE STRAP

10шт.

10

87282475

DIA KIT, HARVESTER

Includes Ref. 2, 3, 4, 5, 9

1шт.
