(A.50.A.96.88[07]) - AUTO GUIDANCE-READY, STEERING WHEEL SENSOR

Запчасти Case IH AFX8010 (A.50.A.96.88[07]) - AUTO GUIDANCE-READY, STEERING WHEEL SENSOR A - Distribution Systems

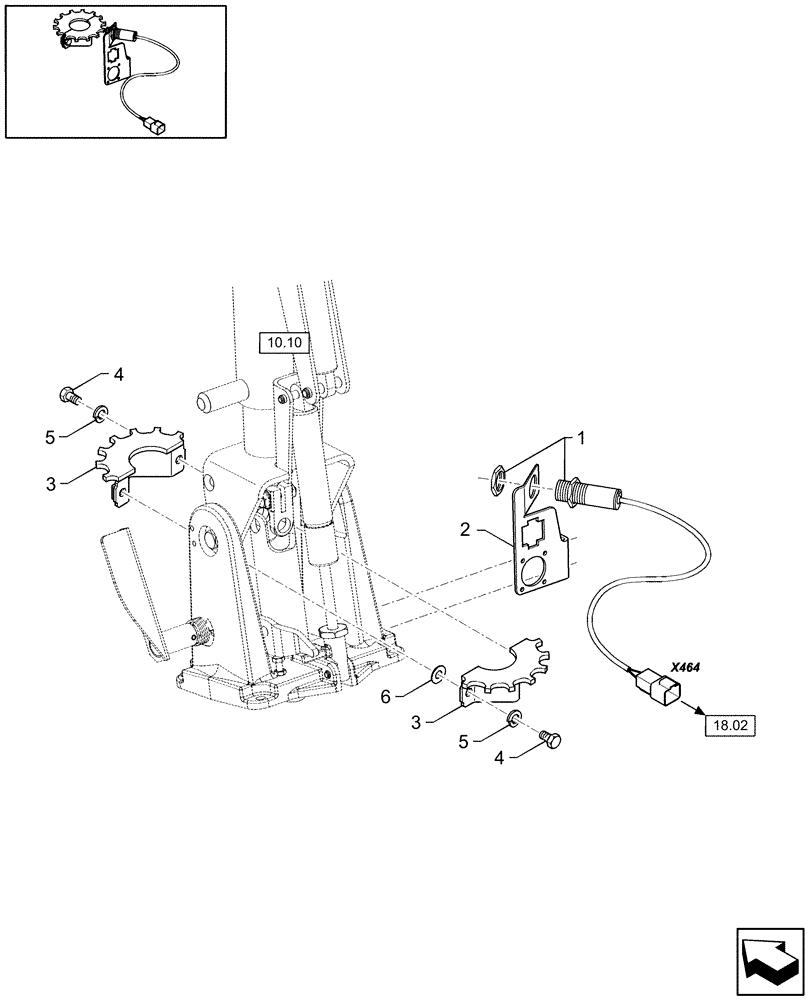

Схема запчастей Case IH AFX8010 - (A.50.A.96.88[07]) - AUTO GUIDANCE-READY, STEERING WHEEL SENSOR A - Distribution Systems
3
5
4
4
3
5
1
10.10
2
6
18.02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84058862

SENSOR

Auto Guidance Steering Wheel

1шт.

2

84455232

SUPPORT

1шт.

3

84452411

SPLINED RING

2шт.

4

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

5

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

6

399544

WASHER,6.2mm ID x 17mm OD x 2mm Thk

1шт.

7

84454986

WIRE HARNESS

Harness, Steering Cyl. Sensor/Cab Main/CCM-1/CCM-2/CCM-3/Valve/Steering Col. Sensor/Inclination Sensor

1шт.

Not Shown

1шт.
