(A.50.A.96.88[13]) - SMART STEER AUTO-GUIDANCE KIT - ELECTRICAL WIRING

Запчасти Case IH AFX8010 (A.50.A.96.88[13]) - SMART STEER AUTO-GUIDANCE KIT - ELECTRICAL WIRING A - Distribution Systems

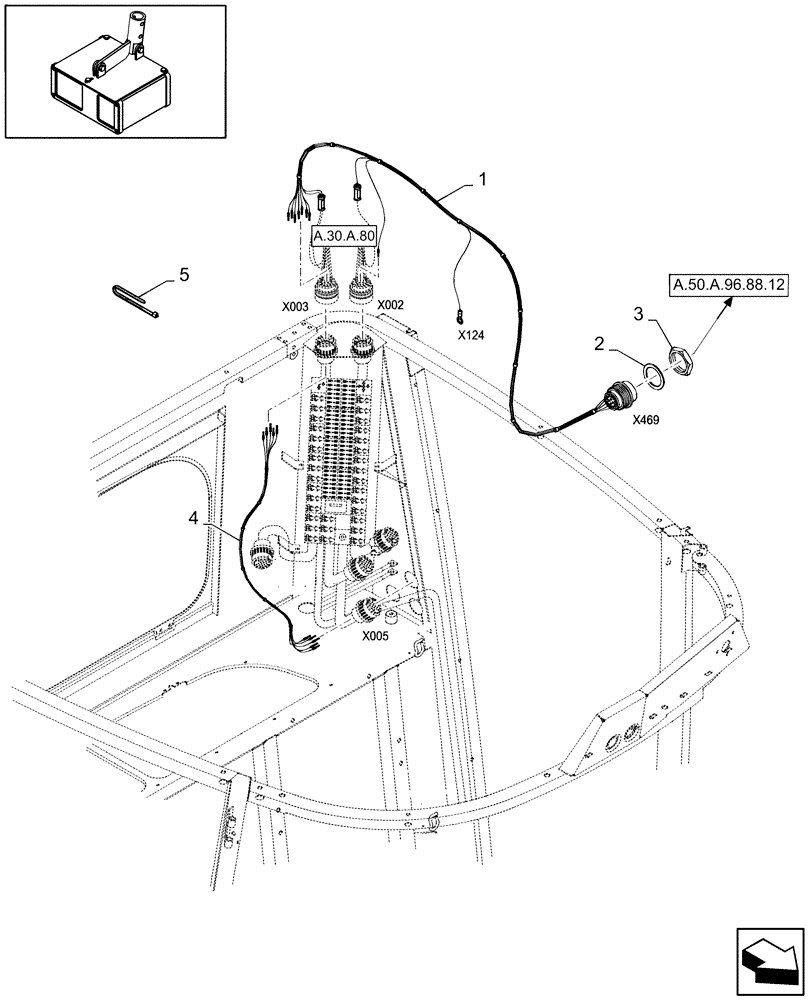

Схема запчастей Case IH AFX8010 - (A.50.A.96.88[13]) - SMART STEER AUTO-GUIDANCE KIT - ELECTRICAL WIRING A - Distribution Systems
2
3
5
4
1
a.30.a.80
a.50.a.96.88.12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84454966

WIRE HARNESS

Harness, Wire

1шт.

Included In Kit 87327568; See Fig. A.50.A.96.88[11]

1шт.

2

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

1шт.

3

636666

NUT,1 11/16"-18

1шт.

4

84454929

WIRE HARNESS

Harness, Wire

1шт.

Included In Kit 87327568; See Fig. A.50.A.96.88[11]

1шт.
