(08-04) - 100280A1 - VALVE ASSEMBLY, FOR 1600 COMBINES

Запчасти Case IH 1680 (08-04) - 100280A1 - VALVE ASSEMBLY, FOR 1600 COMBINES (08) - HYDRAULICS

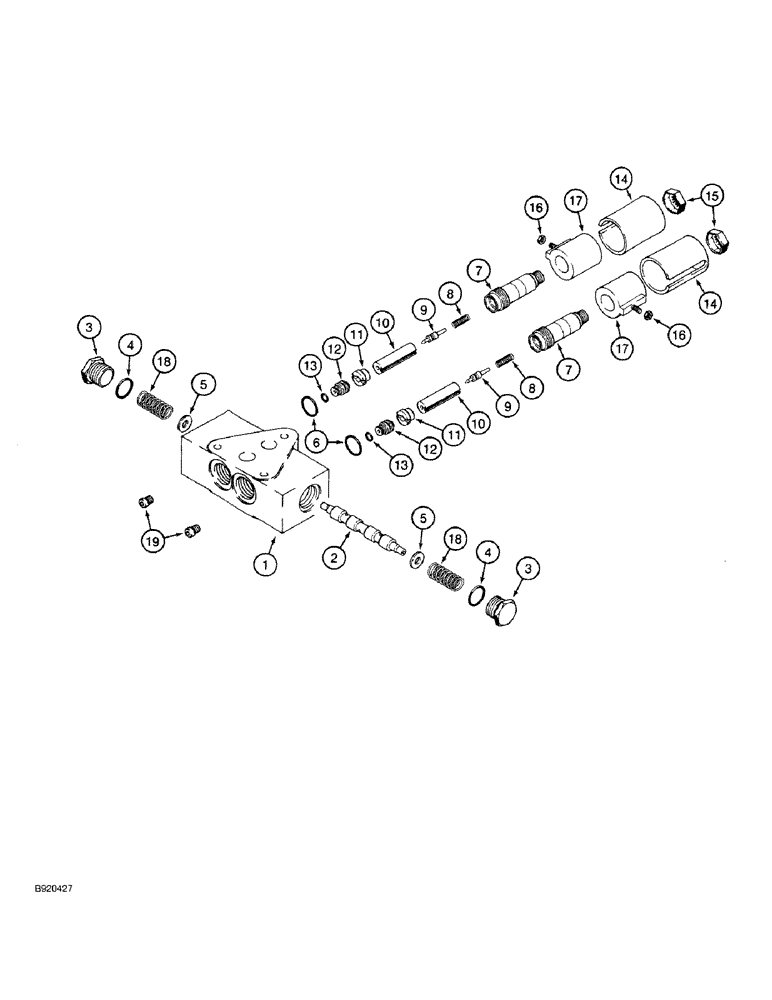

Схема запчастей Case IH 1680 - (08-04) - 100280A1 - VALVE ASSEMBLY, FOR 1600 COMBINES (08) - HYDRAULICS
15
17
1
19
13
12
16
11
10
14
5
8
3
4
14
7
2
3
8
9
4
11
13
9
7
18
6
12
10
17
16
5
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

100280A1

VALVE

SECTION, consists of 1-19

1шт.

1

BODY, order 100280A1

1шт.

2

SPOOL, order 100280A1

1шт.

3

100475A1

PLUG

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

5

1301687C1

WASHER

2шт.

6

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

2шт.

7

1301627C2

SLEEVE

2шт.

8

1301640C1

SPRING

2шт.

9

1301647C1

POPPET

2шт.

10

1301648C1

ARMATURE

ASSY

2шт.

11

1301624C1

BUSHING

2шт.

12

1301625C1

ORIFICE

PISTON, if so equipped

2шт.

13

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

14

1301632C1

CAP

COVER

2шт.

15

107825

NUT,Stamped, 1/2"-20

1/2 in

2шт.

16

225-20210

NUT,#10-32, Brass

2шт.

17

1301730C1

VALVE

COIL

2шт.

18

100474A1

SPRING

2шт.

19

107964A1

PLUG

ORIFICE, if so equipped

2шт.

1282278C2

SEAL KIT

KIT, consists of 4, 6, 13

1шт.
