(4-22) - REAR LIGHTS AND FUEL SENDER HARNESS

Запчасти Case IH 1670 (4-22) - REAR LIGHTS AND FUEL SENDER HARNESS (06) - ELECTRICAL

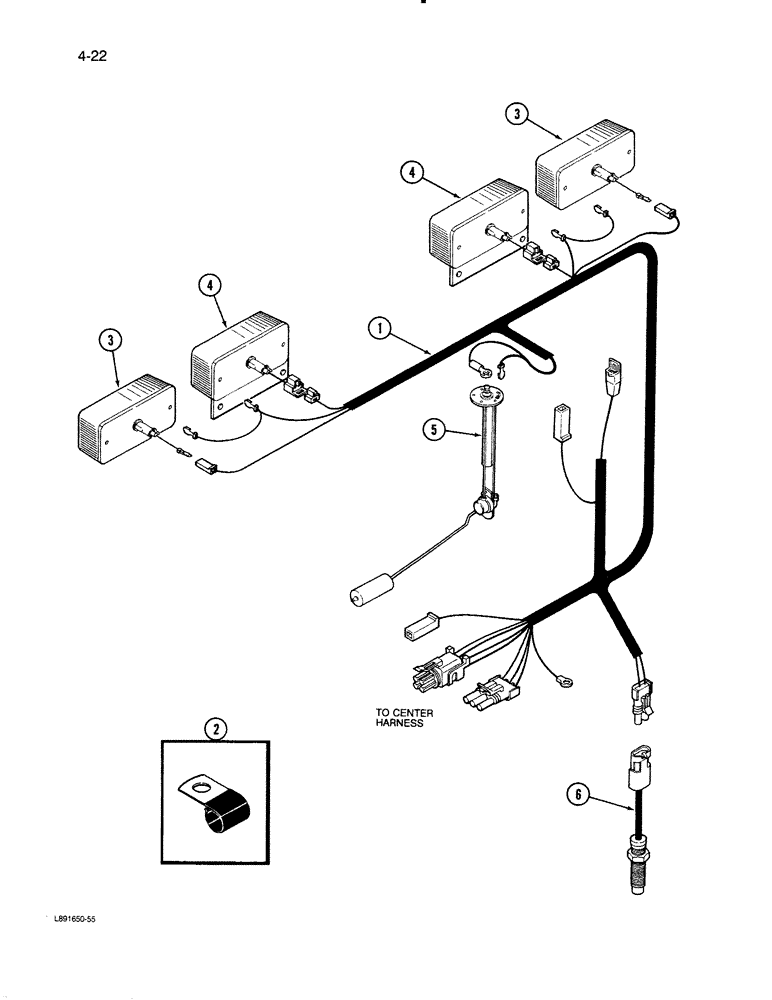

Схема запчастей Case IH 1670 - (4-22) - REAR LIGHTS AND FUEL SENDER HARNESS (06) - ELECTRICAL
3
3
6
2
1
4
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1983342C2

HARNESS

ASSEMBLY - rear lights and fuel sender

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness retaining

6шт.

3

130882C91

LAMP

LAMP ASSEMBLY - warning rear (See Figure 4-34)

2шт.

4

216044C92

LAMP

ASSEMBLY - tail (See Figure 4-34)

2шт.

5

REF

INSTRUCTION

GAUGE - fuel level sending unit (See Figure 3-12)

1шт.

6

1252494C2

TRANSMITTER

- transducer, engine RPM

1шт.
