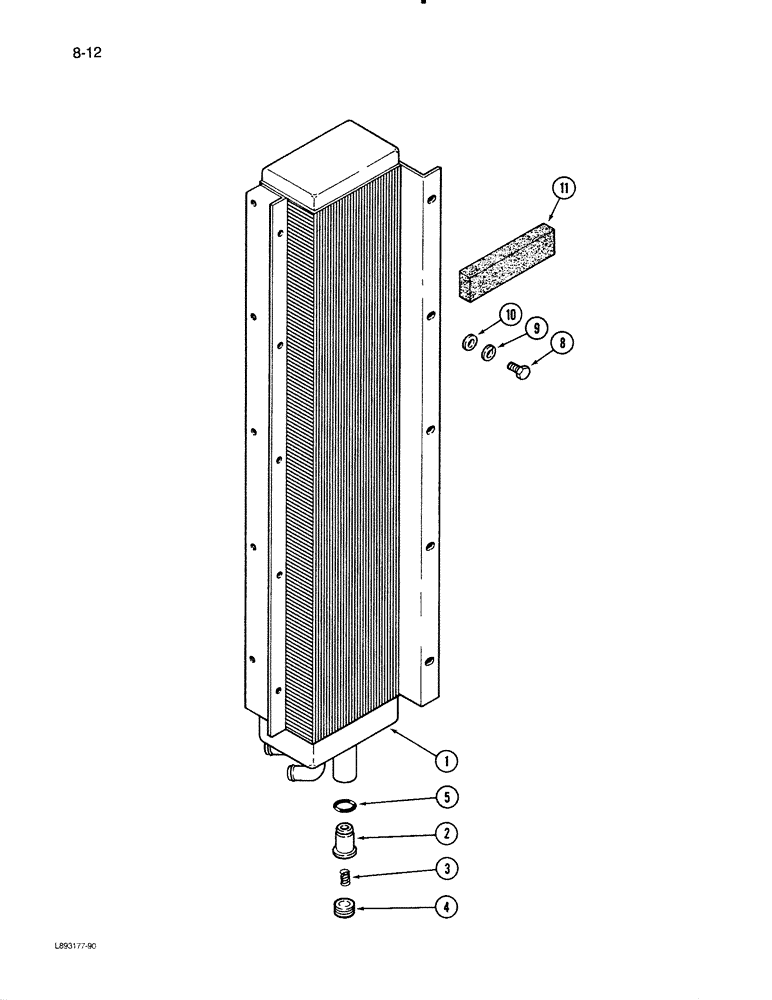

Запчасти Case IH 1670 (8-12) - 1265696C92 OIL COOLER (07) - HYDRAULICS

1

1265696C92

COOLER

ASSEMBLY - oil, Includes: Ref. 2 - 5

1шт.

2

146547C1

VALVE

- check

1шт.

3

61222C1

SPRING

- check valve

1шт.

4

146548C1

PLUG

- valve retaining

1шт.

5

G106453

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

- check valve

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

10шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

10

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

10шт.

11

NSS

NOT SOLD SEPARAT

SEAL - oil cooler (Order 73222C1, Serial Range: cut-length)

2шт.
