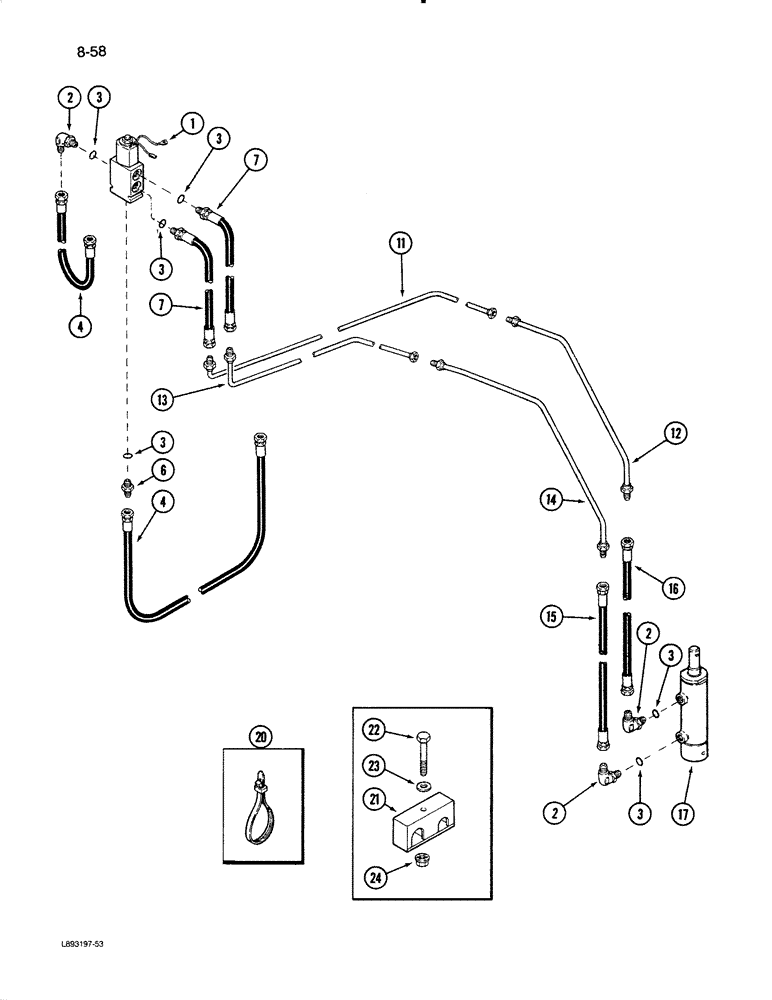

Запчасти Case IH 1670 (8-58) - FEEDER CLUTCH VALVE SYSTEM, MODULAR CONTROL (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - feeder and separator clutch (See Figure 8-68)

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adj, 9/16-18 inch flare x O-ring boss

3шт.

4

632455R91

HOSE

- feeder clutch, 14 inch

2шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

7

548745R1

HYDRAULIC HOSE,0.38" ID x 12.00", SAE 100R1

Feeder Clutch 0.38" ID x 12.00", SAE 100R1

2шт.

11

196792C1

HYD TUBE

TUBE ASSEMBLY - feeder clutch upper forward

1шт.

12

196823C2

HYD TUBE

TUBE ASSEMBLY - feeder clutch lower

1шт.

13

196748C1

HYD TUBE

TUBE ASSEMBLY - feeder clutch upper rearward

1шт.

14

196793C1

HYD TUBE

TUBE ASSEMBLY - feeder clutch lower

1шт.

15

155309C91

HYDRAULIC HOSE,0.31" ID x 20.00", SAE 100R1

Feeder Clutch 0.31" ID x 20.00", SAE 100R1

1шт.

16

632455R91

HOSE

- feeder clutch, 14 inch

1шт.

17

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic, feeder clutch (See Figure 8-72)

1шт.

20

702093C1

CABLE TIE

STRAP - hose retaining

1шт.

21

183825C1

CLAMP

- tube retaining

4шт.

22

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex, 1/4 NC x 2-1/4 inch

4шт.

23

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, hardened

4шт.

24

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

4шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

6шт.
