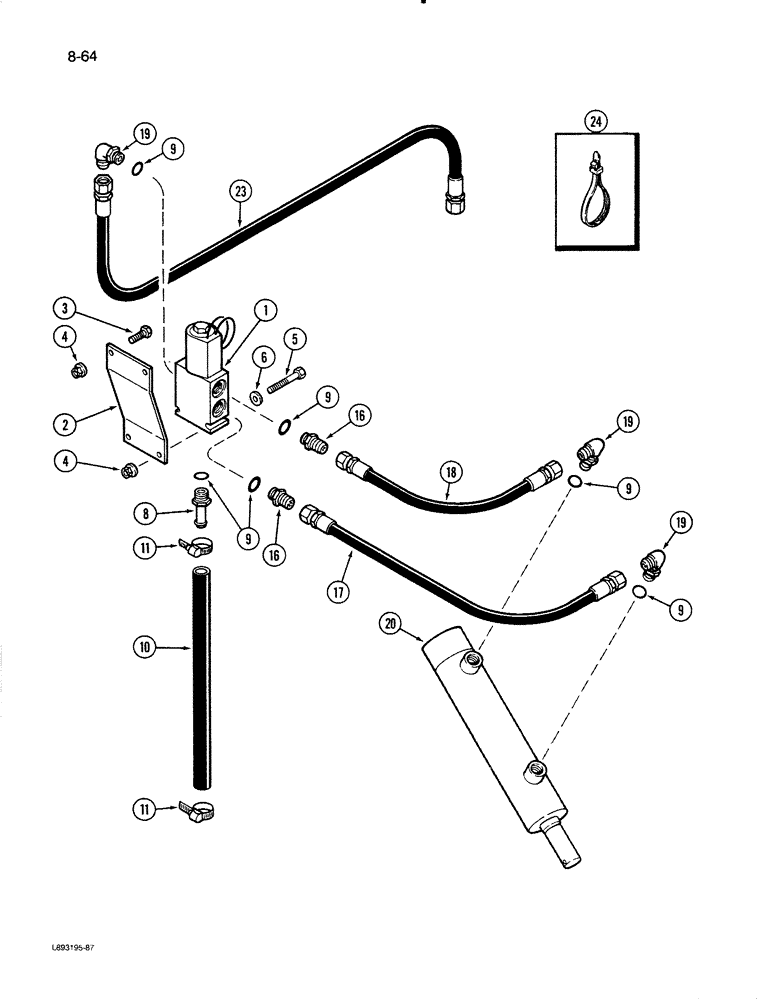

Запчасти Case IH 1670 (8-64) - SEPARATOR CLUTCH SYSTEM, MODULAR CONTROL (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch (See Figure 8-68)

1шт.

2

187506C1

SUPPORT

- separator clutch valve

1шт.

3

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

4

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

4шт.

5

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

6

22859R1

WASHER

- flat, 11/32 x 3/4 x 21/32 inch

2шт.

8

178036C1

CONNECTOR, ELEC

FITTING - beaded tube, 3/8 inch ID hose

1шт.

10

NSS

NOT SOLD SEPARAT

HOSE - separator clutch return, 22 inch long (Order S118400, Serial Range: cut-length)

1шт.

11

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adjustable, includes screw #4, 0.25/0.62 Type F Worm

2шт.

16

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

2шт.

17

155309C91

HYDRAULIC HOSE,0.31" ID x 20.00", SAE 100R1

Feeder Clutch 0.31" ID x 20.00", SAE 100R1

1шт.

18

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

HOSE ASSEMBLY - separator clutch, 3/8 ID x 17 inch

1шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adj, 9/16-18 inch flare x O-ring boss

3шт.

20

REF

INSTRUCTION

CYLINDER - hydraulic, separator clutch (See Figure 8-74)

1шт.

23

178961C1

HOSE,7.9 mm ID x 1270.00 mm, SAE 100R1

- Cylinder Lower 7.9 mm ID x 1270.00 mm, SAE 100R1

1шт.

24

702093C1

CABLE TIE

STRAP - cable retaining

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

6шт.
