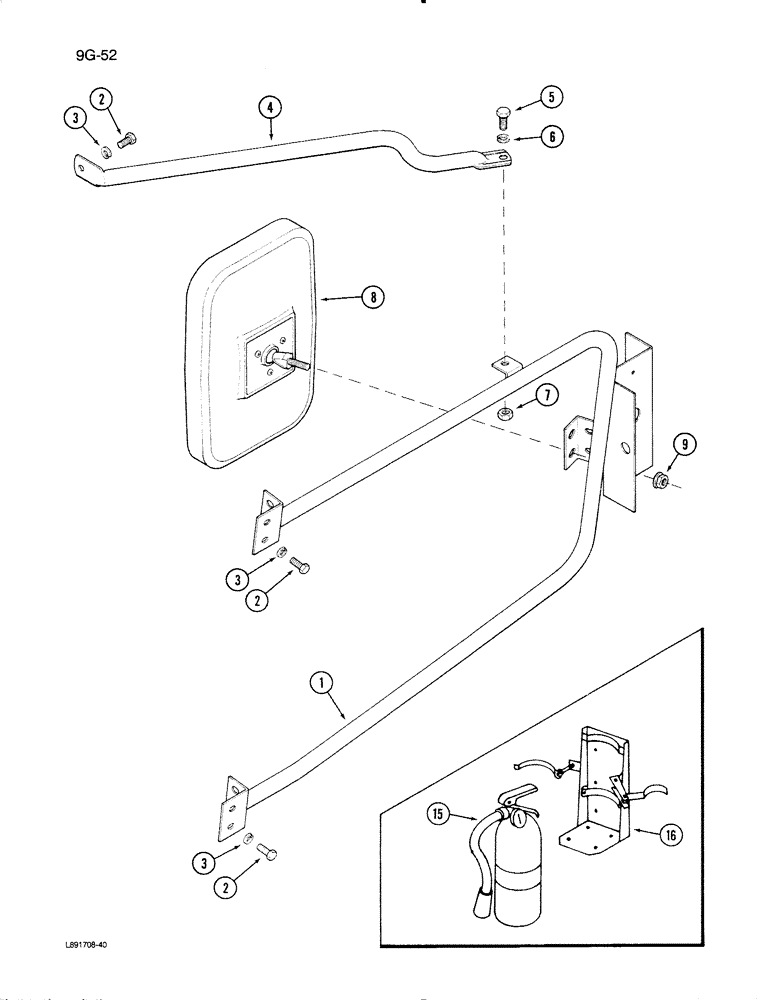

Запчасти Case IH 1670 (9G-52) - REAR VIEW MIRROR, LEFT (10) - CAB & AIR CONDITIONING

1

1281911C1

TUBE,694, 476 mm Length

ASSEMBLY - mirror, left

1шт.

2

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch

4шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

1281913C1

TUBE,19.05 mm OD, 444, 303.5 mm Length

- brace, left

1шт.

5

24839R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

25522R1

NUT,3/8"-16, G8

- hex, 3/8 inch NC

1шт.

8

1283403C1

MIRROR

- rear view, left

1шт.

9

3164622R1

LOCK NUT

- flange lock, 10 mm

1шт.

15

549975C91

FIRE EXTINGUISHER

EXTINGUISHER - fire

1шт.

16

549978C91

BRACKET

- extinguisher mounting (Parts accessory), fire

1шт.
