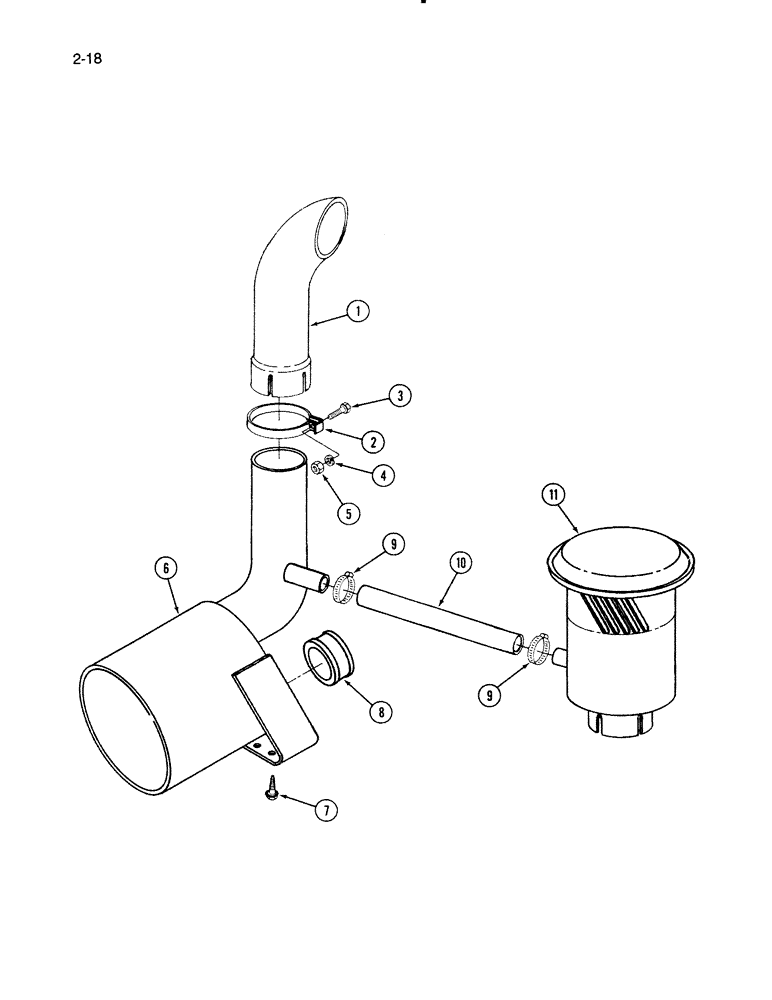

Запчасти Case IH 1670 (2-18) - EXHAUST MUFFLER AND PRECLEANER, DTI466C ENGINE (01) - ENGINE

1

1275833C2

TUBE,89.92 mm ID, 88.9 mm OD

PIPE - exhaust elbow

1шт.

2

1321280C1

CLAMP

- exhaust pipe elbow

1шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

6

1275826C1

MUFFLER

- exhaust

1шт.

7

1327799C1

BOLT,Hex Wshr Hd, 3/8" x 1 1/4"

BOLT - exhaust muffler

4шт.

8

107594C1

SPACER

- turbocharger exhaust

1шт.

9

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP - thermostat bypass hose

2шт.

10

NSS

NOT SOLD SEPARAT

HOSE - exhaust ejector, 15 inch long (Order 407001R1, Serial Range: cut-length)

1шт.

407001R1

HOSE,31.75mm ID x 914.4mm L, SAE 20R1

- rubber, 3 foot length

1шт.

11

REF

INSTRUCTION

PRECLEANER ASSEMBLY - air (See Figure 2-14)

1шт.
