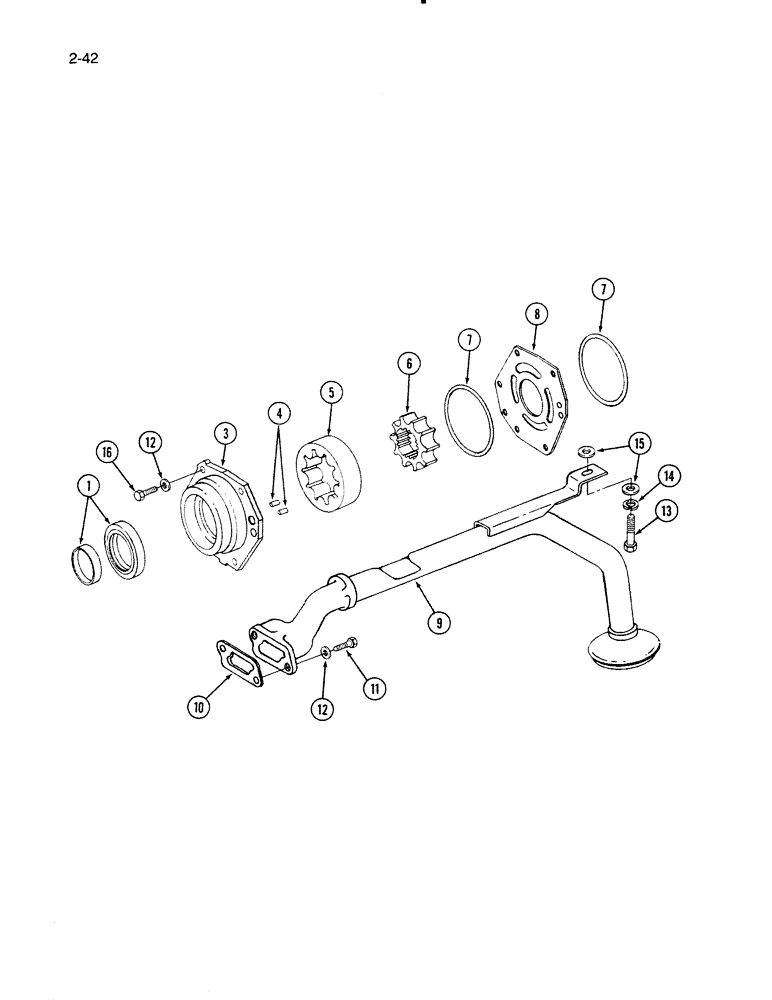

Запчасти Case IH 1670 (2-42) - OIL PUMP AND INLET TUBE, DTI466C ENGINE (01) - ENGINE

1

690437C93

GASKET KIT

CRANKSHAFT KIT - front oil seal and wear sleeve, Includes seal and sleeve

1шт.

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

1808832C91

PUMP

PUMP ASSEMBLY - oil, new, Includes: Ref. 3 - 8

1шт.

244645A1R

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

244645A1C

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

735249C91

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP - oil, remanufactured (North America only)

1шт.

1928219C1

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - oil pump

1шт.

4

680482C1

PIN

PIN - dowel, hardened, 5/16 x 5/8 inch

2шт.

5

NSS

NOT SOLD SEPARAT

ROTOR - outer

1шт.

6

NSS

NOT SOLD SEPARAT

ROTOR - inner

1шт.

7

675860C1

RING

O-RING - oil pump housing

1шт.

8

1802879C1

PLATE

PLATE - oil pump housing

1шт.

9

1806843C1

TUBE

TUBE ASSEMBLY - oil pump inlet

1шт.

10

1802867C1

GASKET

GASKET - oil pump inlet tube

1шт.

11

25232R1

BOLT,Hex, 5/16" - 18 x 2", Gr 8

BOLT - hex, 5/16 NC x 2 inch

2шт.

12

27326R1

WASHER,.344" x 11/16" x .089", HDN

WASHER - flat hardened, 5/16 inch

8шт.

13

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G8, Full Thd

1шт.

14

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

15

25896R1

WASHER,13/32" x 13/16" x .09", HDN

WASHER - flat hardened, 3/8 inch

2шт.

16

27971R1

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 8

BOLT - hex, 5/16 NC x 1-1/8 inch

1шт.
