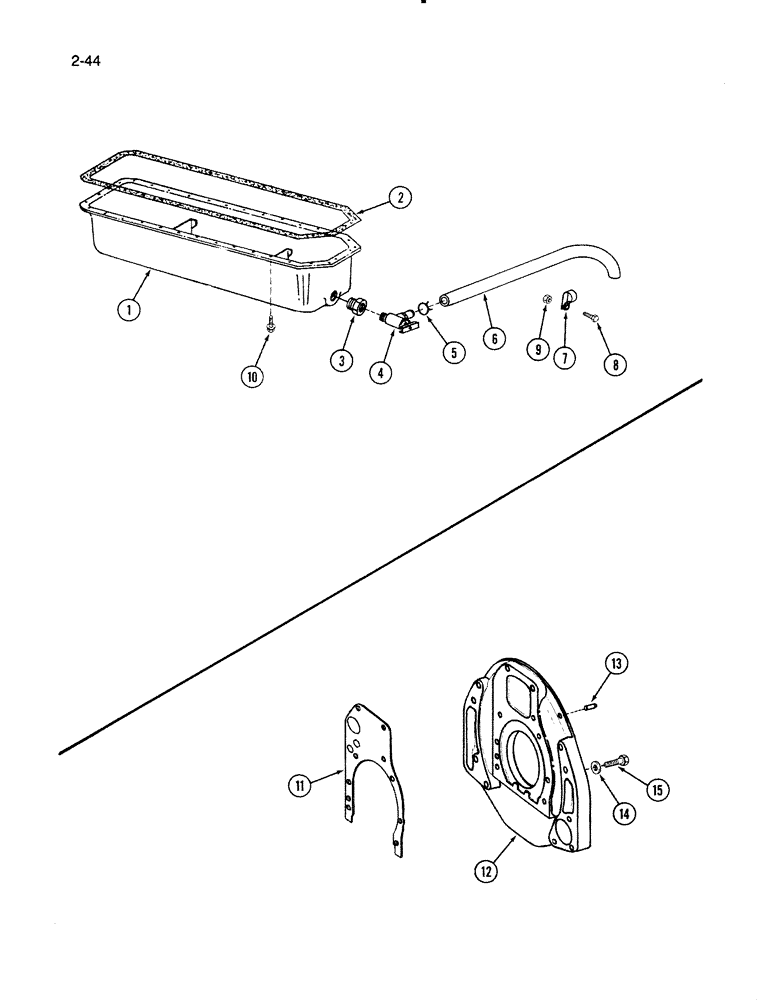

Запчасти Case IH 1670 (2-44) - OIL PAN, DTI466C ENGINE (01) - ENGINE

1

689481C91

PAN

ASSEMBLY - oil

1шт.

2

671827C1

OIL PAN GASKET SET

- oil pan

1шт.

3

175778H1

ADAPTER

- 1/2 to 3/8 inch pipe

1шт.

4

301803R1

SHUT-OFF VALVE

VALVE ASSEMBLY - oil drain hose

1шт.

5

112700R1

HOSE CLAMP,#15, 15/16", Spring

CLAMP - spring wire hose, No. 15 Type E

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - crankcase oil drain, 36 inch long (Order S118576, Serial Range: cut-length)

1шт.

S118576

HOSE,0.62" ID BULK

0.625" ID x 300.00" Bulk

1шт.

7

406381C1

CLIP

- rubber cushioned

2шт.

8

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

9

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

10

677490C1

SCREW

- washer head, oil pan

34шт.

11

682945C1

GASKET

- rear mounting plate eng

1шт.

12

683716C91

PLATE

ASSEMBLY - engine rear mounting, Includes: Ref. 13

1шт.

13

375362R1

PIN,12.69mm OD x 34.8mm L

- dowel, 1/2 x 1-3/8 inch, engine rear mounting plate

2шт.

14

26273R1

WASHER

- flat, 17/32 x 1-1/16 x 1/8 inch, engine rear mounting plate

6шт.

15

24863R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

Engine rear mounting plate Hex, 1/2"-13 x 1 3/4", G8

6шт.
