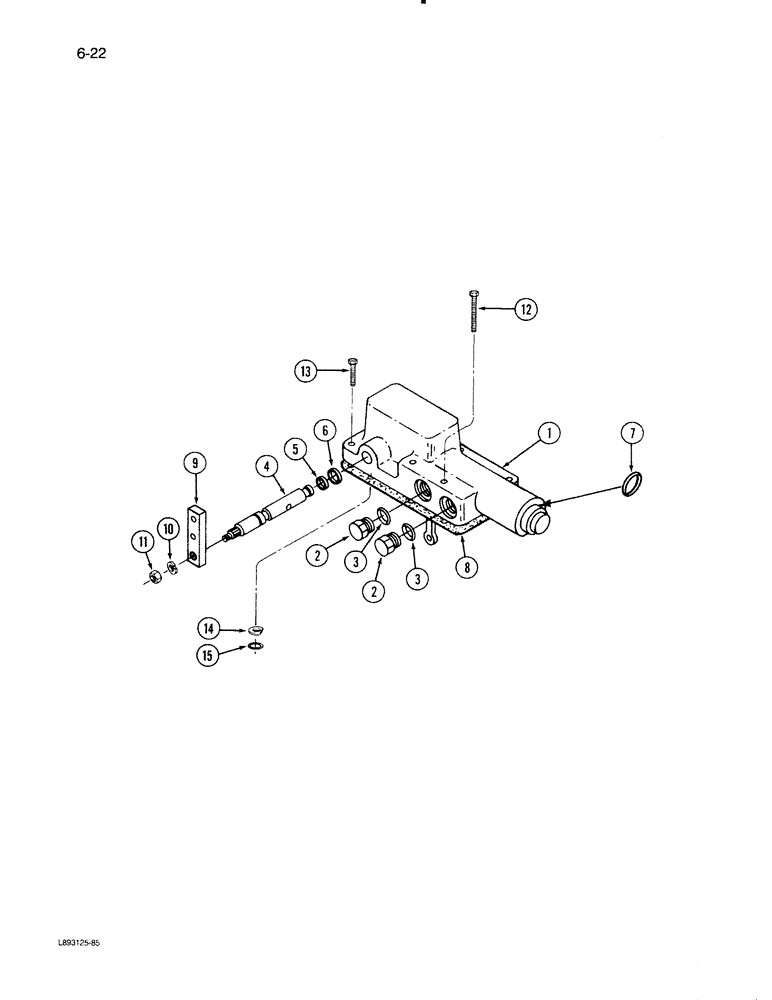

Запчасти Case IH 1670 (6-22) - HYDROSTATIC PUMP, CONTROL VALVE (03) - POWER TRAIN

133755C94

VALVE

- pump control, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order 133755C94)

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - body (Order 133755C94)

1шт.

4

1978048C1

SHAFT

- control valve, Includes: Ref. 5

1шт.

1978048C1- ORDER C2. NEW SHAFT INCLUDES NEW DUST SEAL AND GASKET WHICH ARE NSS.SEE QUALITY COMMENTS.

1шт.

Part # 1978048C2, The set screw is used to hold the control shaft into position. It is not shown on the combine parts book. It is shown in the 2155 cotton picker parts book page 6-24, item 14 but is "NSS". I called and talked to Eaton. The Eaton part number is 101128. I have contacted an Eaton distributor in the 847 area code. Curt at Pontiac has ordered through them the parts he needs. I have also ask Engineering to also review adding this hex socket screw to the kit. Randy Carlz

1шт.

5

355967R1

O-RING,0.364" ID x 0.003" Width

- 1/2 x 3/8 x 1/16 inch

1шт.

7

80269C1

O-RING KIT

O-RING - 5/8 x 3/4 x 1/16 inch

1шт.

8

133756C1

GASKET

- control valve

1шт.

9

404782R2

PLATE

- control valve shaft

1шт.

10

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER - lock, 5/16 inch

1шт.

11

NLS

NO LONGER SERVICED

- hex jam, 5/16 inch NC

1шт.

12

25750R1

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

- hex. 5/16 NC x 1-3/4 inch

2шт.

13

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

14

1272750C1

ORIFICE

- control valve

1шт.

15

92647C1

O-RING,7.52mm ID x 0.574" OD x 3.53mm

- control valve vent retainer

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.
