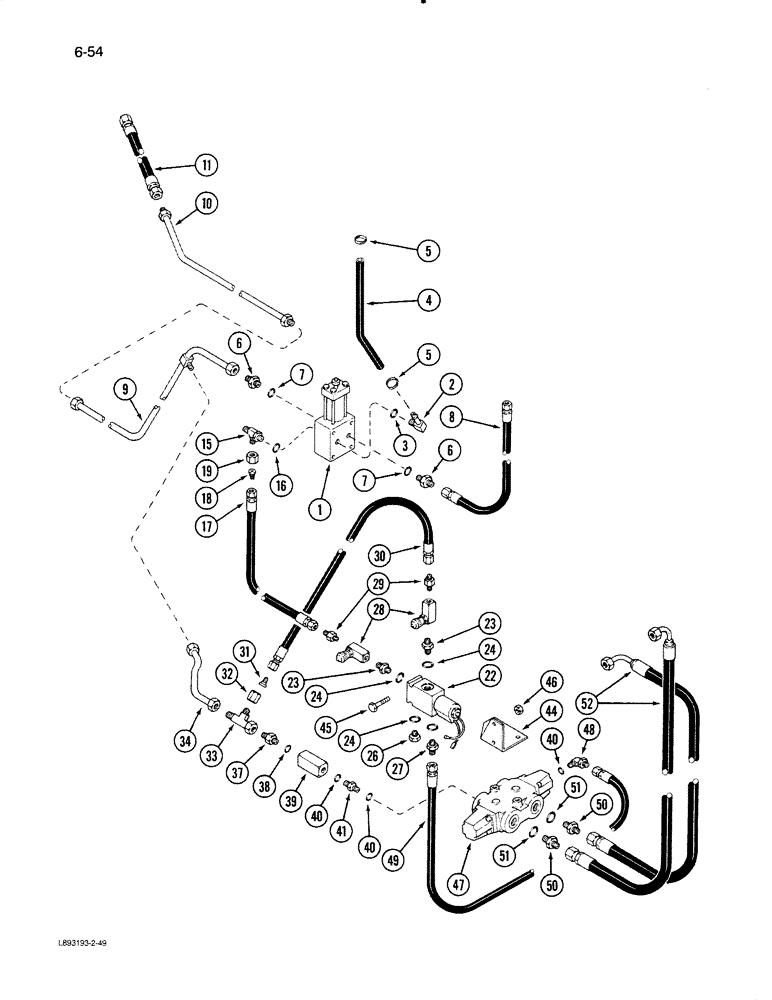

Запчасти Case IH 1670 (6-54) - REAR WHEEL DRIVE, DRIVE VALVE TO BRAKE VALVE SYSTEM (03) - POWER TRAIN

REF

INSTRUCTION

VALVE ASSEMBLY - brake (See Figure 7-10)

1шт.

2

1304632C1

ELBOW

- 90 degree, 3/4 inch NF

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

1202977C1

HOSE,0.38" ID x 33.50"

- Brake valve return 0.38" ID x 33.50"

1шт.

5

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adjustable, includes screw #4, 0.25/0.62 Type F Worm

2шт.

6

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 O-ring boss

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

8

632454R91

HYDRAULIC HOSE,0.31" ID x 30.00", SAE 100R1 Class B

HOSE - charge pressure, 30 inch

1шт.

9

1304858C1

HYD TUBE

TUBE - drain

1шт.

10

1317167C1

HYD TUBE

TUBE - charge pressure, lower

1шт.

11

183708C1

HOSE,0.31" ID x 34.00", SAE 100R1

- charge pressure, lower

1шт.

15

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

- adjustable

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

66880C1

HOSE,6.35mm ID x 508mm L, SAE 100R1

Drive Valve Return 0.25" ID x 20.00", SAE 100R1

1шт.

18

9403399

REDUCER,37 Degree, 1/2" x 1/4" Tube

FITTING - 7/16 inch NF thread

1шт.

19

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - tube, Style B, 1/2 inch

1шт.

22

REF

INSTRUCTION

VALVE - drive (See Figure 8-68)

1шт.

23

610082C1

HYD CONNECTOR,9/16"-18, 37 Degree x 1/8"-27, NPTF

CONNECTOR - straight, 3/8 x 1/8 inch

2шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.

26

76349

PLUG,9/16" - 18 ORB

1шт.

27

157519C1

HYD CONNECTOR,7/16"-20, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - 3/8 to 1/4 inch

1шт.

28

1304962C1

VALVE

- flow control

2шт.

29

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, 7/16-20 thread x 1/8 inch PT

2шт.

30

183531C1

HOSE,6.35 mm ID x 686.00, SAE 100R1 CLASS 7

- charge pressure

1шт.

31

9403398

REDUCER,37 Degree, 3/8" x 1/4" Tube

FITTING - 3/8 x 1/4 inch

1шт.

9403371

CAP,37 Degree, 9/16"-18

- tube, 9/16 inch thread

1шт.

32

9403527

TUBE NUT,37 Degree, 9/16"-18, Type B

NUT - retaining, 9/16 inch NF

1шт.

33

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flared

1шт.

34

1310705C1

HYD TUBE

TUBE - charge pressure

1шт.

37

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - short, 9/16-18 x 7/16-20 thread

1шт.

38

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

39

1304237C1

VALVE

- check

1шт.

40

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

3шт.

41

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR ASSEMBLY - swivel, 7/16-20 inch thread

1шт.

44

1310706C1

ANGLE

BRACKET - valve mounting

1шт.

45

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

46

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

2шт.

47

REF

INSTRUCTION

VALVE ASSEMBLY - drive (See Figure 6-52)

1шт.

48

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree adjustable, 7/16-20 thread

1шт.

49

66880C1

HOSE,6.35mm ID x 508mm L, SAE 100R1

Drive Valve 0.25" ID x 20.00", SAE 100R1

1шт.

50

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

51

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

2шт.

52

1304931C1

HOSE,19.05mm ID x 762mm L

- valve pressure, 3/4 ID x 30 inch

2шт.
