(4-16) - CENTER HARNESS

Запчасти Case IH 1670 (4-16) - CENTER HARNESS (06) - ELECTRICAL

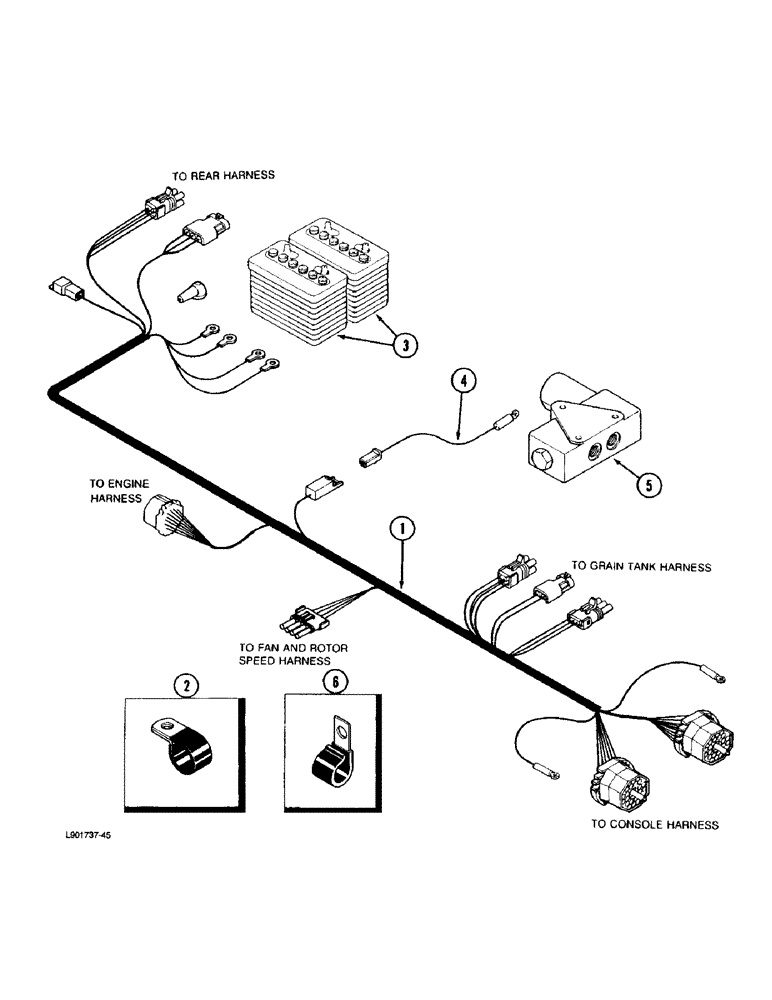

Схема запчастей Case IH 1670 - (4-16) - CENTER HARNESS (06) - ELECTRICAL
4
1
2
3
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1983382C1

HARNESS

- center

1шт.

2

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

P-type, Insulated retaining (Replaces clamp 92070C1) 1 1/4", Insul, 7/16" Bolt

10шт.

3

BMF31GS

DRY BATTERY

BATTERY - 12 volt, see figure 4-56 for cables and routing

2шт.

4

187736C1

CABLE

- separator clutch valve

1шт.

5

1301171C91

VALVE

ASSEMBLY - separator clutch, parts list figure 8-66

1шт.

6

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

- harness retaining

2шт.
