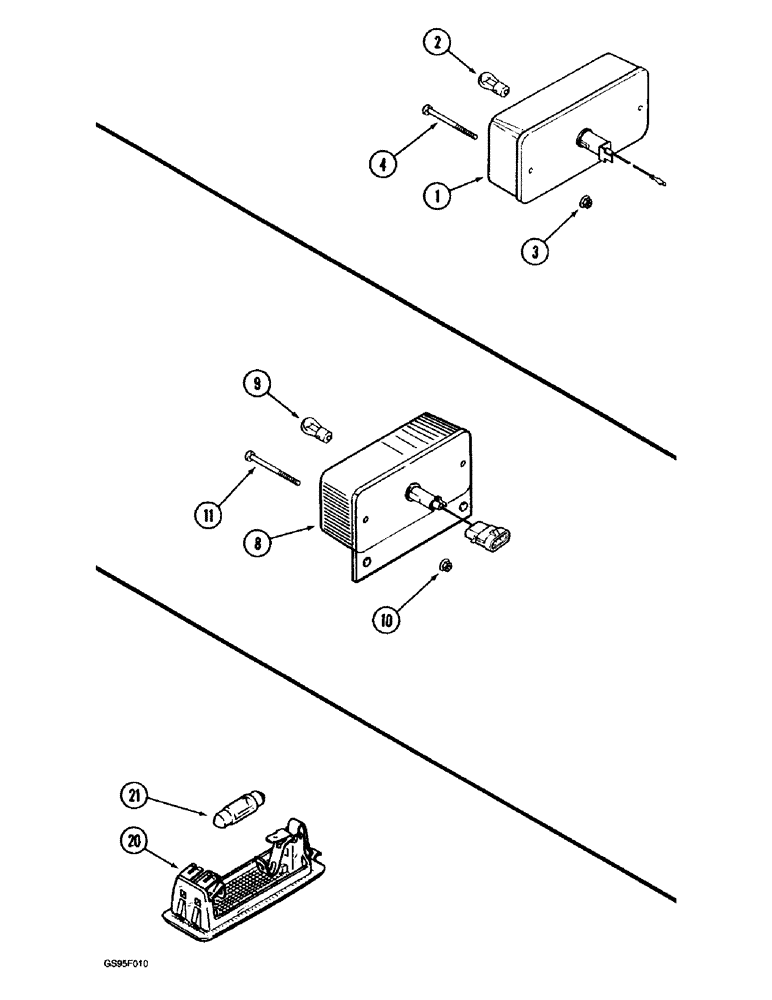

Запчасти Case IH 1670 (4-38) - LAMP ASSEMBLIES, FRONT AND REAR WARNING LAMP, STOP AND TAIL LAMP, DOME LAMP (06) - ELECTRICAL

130882C91

LAMP

LAMP ASSEMBLY - warning, flasher, front & rear, Includes: Ref. 1 - 4

4шт.

1

130883C1

LENS

- amber, warning lamp front & rear

1шт.

2

A41264

BULB,#1156, 12V

Lamp, Warning front & rear #1156, 12V

1шт.

3

231-51409

SERRATED NUT,Flg, USR, #10-24

Warning lamp front & rear Flg, USR, #10-24

2шт.

4

440-11036

SCREW,Cross Pan Hd, #10-24 x 2 1/4"

- machine, pan Phillips, No. 10 NC x 2-1/4 inch, warning lamp front & rear

2шт.

92260C1

LAMP,12V, 27W, Red

ASSEMBLY, stop and tail, Includes: Ref. 8 - 11

2шт.

8

216045C1

LENS

- red, stop and tail lamp

1шт.

9

T34857

BULB,C6, #1157, 12.8V

- lamp, No. 1157, stop and tail

1шт.

10

231-51409

SERRATED NUT,Flg, USR, #10-24

Stop and tail lamp Flg, USR, #10-24

2шт.

11

440-11036

SCREW,Cross Pan Hd, #10-24 x 2 1/4"

- machine, pan Phillips, No. 10 NC x 2-1/4 inch, stop and tail lamp

2шт.

20

1983391C1

LAMP,12V, 10W

ASSEMBLY, Dome, Includes: Ref. 21

1шт.

21

1094378R1

BULB,J, 12V, 2W

- Lamp, Dome

1шт.
