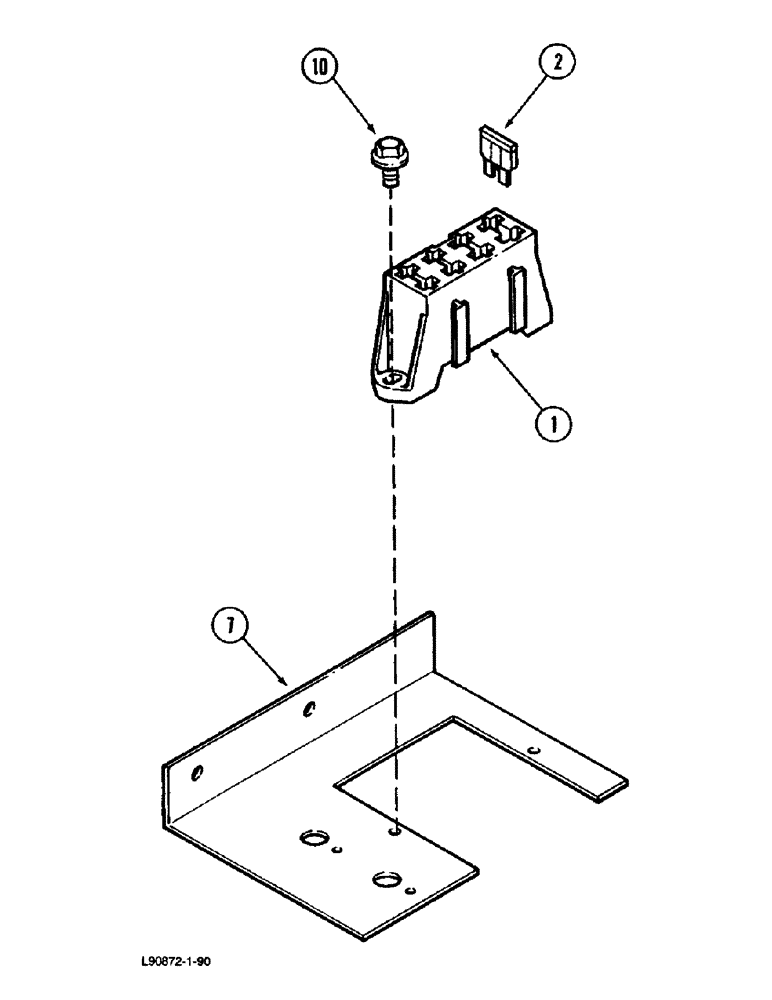

Запчасти Case IH 1670 (4-52) - FUSE AND FUSE BLOCK (06) - ELECTRICAL

1

1345237C1

HARNESS

BLOCK - fuse, see figure 4-6 for right-hand console harness and related parts

3шт.

2

A149796

FUSE

- violet, 3 ampere

2шт.

2

A149798

FUSE

- tan, 5 ampere

2шт.

2

A149799

FUSE

- brown, 7-1/2 ampere

3шт.

2

A149800

FUSE,10 Amp

- red, 10 ampere

5шт.

2

A149801

FUSE,Lt Blue, 15 Amp

- light blue, 15 ampere

2шт.

2

A149802

FUSE

- yellow, 20 ampere

1шт.

2

A149804

FUSE

- light green, 30 ampere

1шт.

7

1280162C3

SUPPORT

- fuse block

1шт.

8

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

2шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

10

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

2шт.
