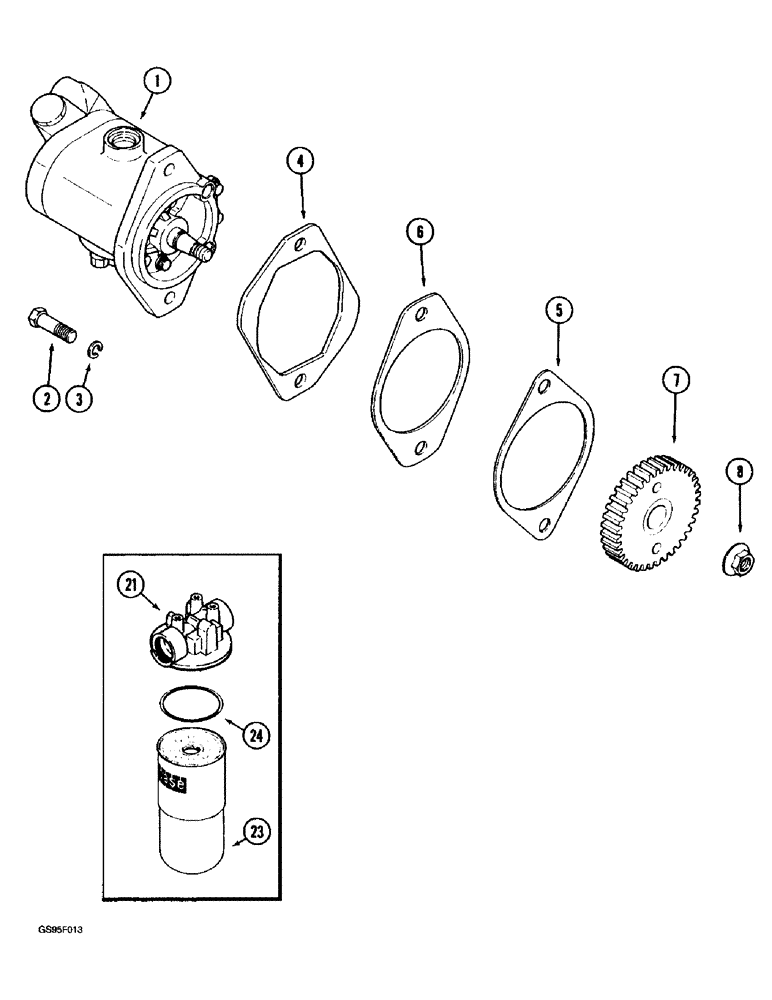

Запчасти Case IH 1670 (8-78) - LEVELING PUMP DRIVE (07) - HYDRAULICS

1

1343676C1

PUMP

ASSEMBLY - leveling, Includes kits

1шт.

1301934C2

SEAL KIT

- seal repair

1шт.

1346491C1

KIT

- flow divider

1шт.

2

854-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 35 mm, class 10.9

2шт.

3

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

4

J913287

GASKET,1.05mm Thk

- air compressor

1шт.

5

J919601

GASKET

- access cover plate (Replaces gasket J913192)

1шт.

6

J902603

SHIM,103.5mm ID x 120mm OD x 1.52mm Thk

SHIM - pump mounting

1шт.

7

J924186

GEAR

- brake pump (Replaces gear J905606)

1шт.

8

131-915

FLANGE NUT,Flg, 1/2"-20, G5

- large hex flange, 1/2 inch NF (Replaces nut J904828)

1шт.

1986525C1

FILTER ASSY

FILTER ASSEMBLY - charge pump, header and reel drive, Includes: Ref. 21, 23, 24 and filter kit

1шт.

87784C91

FILTER ASSY

FILTER ASSEMBLY - hydraulic system, header and reel drive, Includes: Ref. 21, 23, 24 and filter kit

1шт.

21

NSS

NOT SOLD SEPARAT

HEAD - filter (Order assembly), and reel drive

1шт.

1329214C1

HYDRAULIC OIL FILTER

KIT - filter element, header and reel drive

1шт.

23

A177605

HYDRAULIC OIL FILTER

ELEMENT - filter, header and reel drive

2шт.

24

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET - filter element, header and reel drive

4шт.
