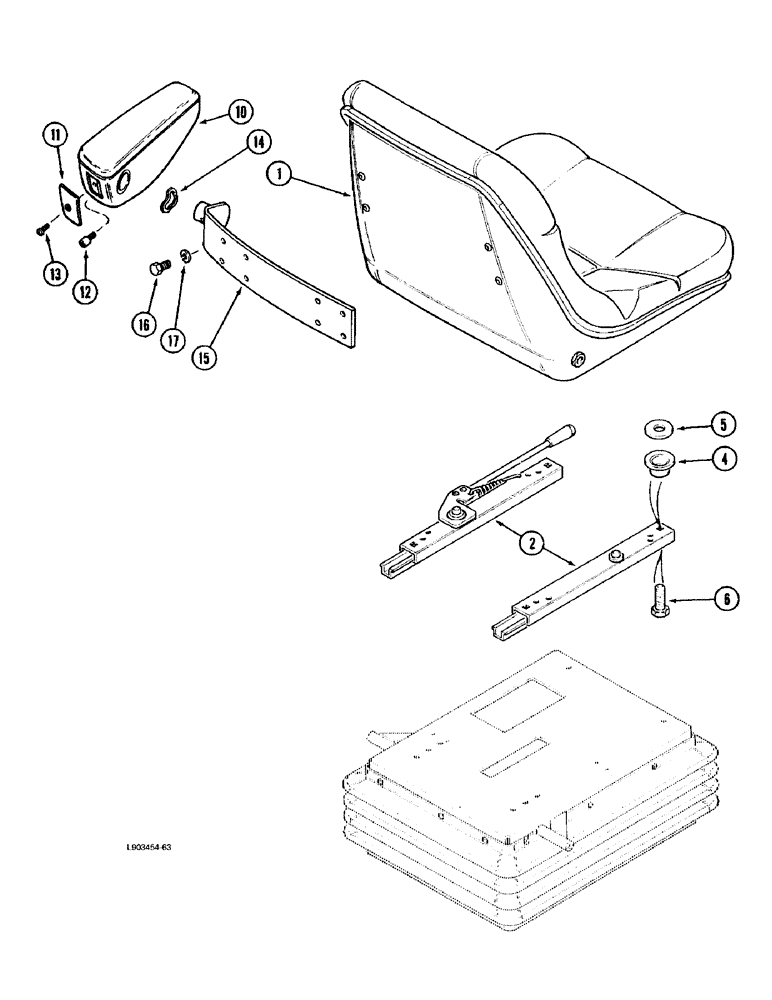

Запчасти Case IH 1670 (9G-10) - MECHANICAL SUSPENSION SEAT, SUSPENSION (10) - CAB & AIR CONDITIONING

1990651C2

SEAT

ASSEMBLY - operators, mechanical, parts list figures 9G-11A through 9G-13A (Replaces seat assembly 1340288C1), Includes: Ref. 1 - 17

1шт.

1340288C1

SEAT

ASSEMBLY - operators, no longer available, order seat assembly1990651C2, Includes: Ref. 1 - 17

1шт.

1

1344106C1

SET OF PARTS

KIT - seat, with pan

1шт.

2

1981784C1

SET OF PARTS

KIT - slide service

1шт.

4

700711545

CUP WASHER

SPACER - slide cup (Replaces spacer S115782)

4шт.

5

1974732C1

WASHER

- flat, 25/64 x 1-1/8 x 1/8 inch

4шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

1344104C1

SET OF PARTS

KIT - armrest, left-hand, Includes: Ref. 10 - 17

1шт.

10

NSS

NOT SOLD SEPARAT

ARMREST - seat, left-hand

1шт.

11

A45583

PLATE

- cover, left-hand armrest

1шт.

12

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest stop Hex Soc Hd, 1/4"-20 x 3/8"

1шт.

13

273-10510

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - self-tapping, flat head slotted, No. 10-16 x 5/8 inch

1шт.

14

A47352

WASHER

- wave, 1-1/8 inch ID

1шт.

15

1344105C1

SUPPORT

BRACKET - armrest

1шт.

16

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

17

192-81000

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
