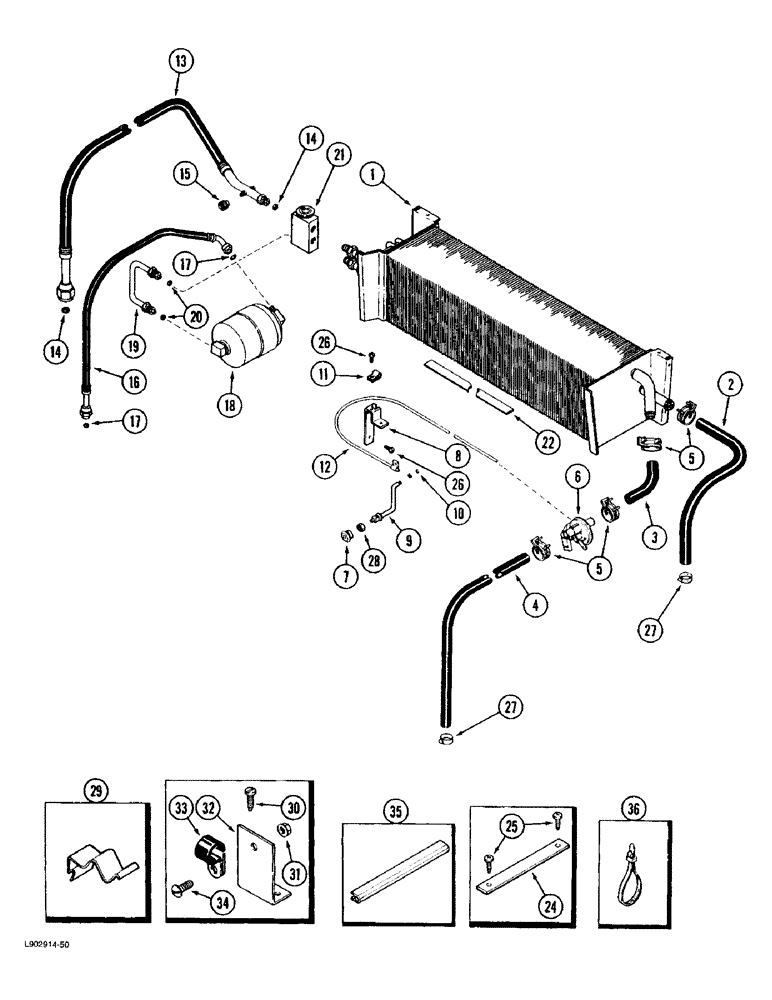

Запчасти Case IH 1670 (9G-34) - HEATER AND AIR CONDITONING SYSTEM, CAB (10) - CAB & AIR CONDITIONING

1

1974632C2

HEAT-EXCHANGER

CORE ASSEMBLY - evaporator, with expansion valve, parts list figure 9G-28

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - heater to chassis junction, 130 inch, cut from 97252CX bulk hose, see below

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - heater to valve, return, 5 inch, cut from 97252CX bulk hose, see below

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - heater to valve to chassis junction, return, 115 inch, cut from 97252CX bulk hose, see below

1шт.

5

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Spring #24

4шт.

6

1331087C1

HEATER VALVE

VALVE - heater control

1шт.

7

111282C1

KNOB

- heater control

1шт.

8

1283445C3

SUPPORT

- cable, heater valve control

1шт.

9

1281809C1

ARM

- heater control

1шт.

10

100-3325

SNAP RING,#25, .207" Dia, E-Type

Ring, Retaining, (Replaces 379310R1) #25, .207" Dia, E-Type

2шт.

11

1283334C1

CLIP

- mounting, heater cable

1шт.

12

1343953C1

CABLE

- control, heater valve

1шт.

13

1276164C1

HOSE

ASSEMBLY - 106 inch (2700 mm) long, Includes: Ref. 14 and 15

1шт.

14

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

2шт.

15

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

1шт.

16

1276163C2

HOSE

ASSEMBLY - 118 inch (3000 mm) long, Includes: Ref. 17

1шт.

17

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

18

1990758C2

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning system, parts list figure 9G-28

1шт.

19

1250438C1

TUBE ASSY.

TUBE ASSEMBLY - receiver-drier, Includes: Ref. 20

1шт.

20

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

21

1990756C1

VALVE

- expansion, parts list figure 9G-28

1шт.

22

NSS

NOT SOLD SEPARAT

TAPE - insulation, 96 inch, cut from 1954475C1 bulk tape, see below

1шт.

24

1321363C2

STRAP

- retaining

2шт.

25

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

4шт.

26

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/8 inch

3шт.

27

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

28

109311H

JAM NUT

- hex, jam, 7/16 inch NF

1шт.

29

1954626C1

SPRING CLIP

CLIP - retaining

1шт.

30

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

2шт.

31

231-5146

FLANGE NUT,3/8"-16

1шт.

32

98158C1

BRACKET

- heater valve support

1шт.

33

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type (Replaces clamp 27291R1) 1", Insul, 3/8" Bolt

1шт.

34

116494C1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 1/2"

1шт.

35

NSS

NOT SOLD SEPARAT

SEAL - hose, 3 inch (Order 196707C1)

1шт.

36

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

97252CX

HOSE

- bulk, 5/8 (16) x 1 (25) x 600 inch (15240 mm) long

1шт.

1954475C1

ROLL

TAPE - bulk, 2-1/2 (63.5) wide x 360 (9150) long x 1/8 inch (3 mm) thick

1шт.
