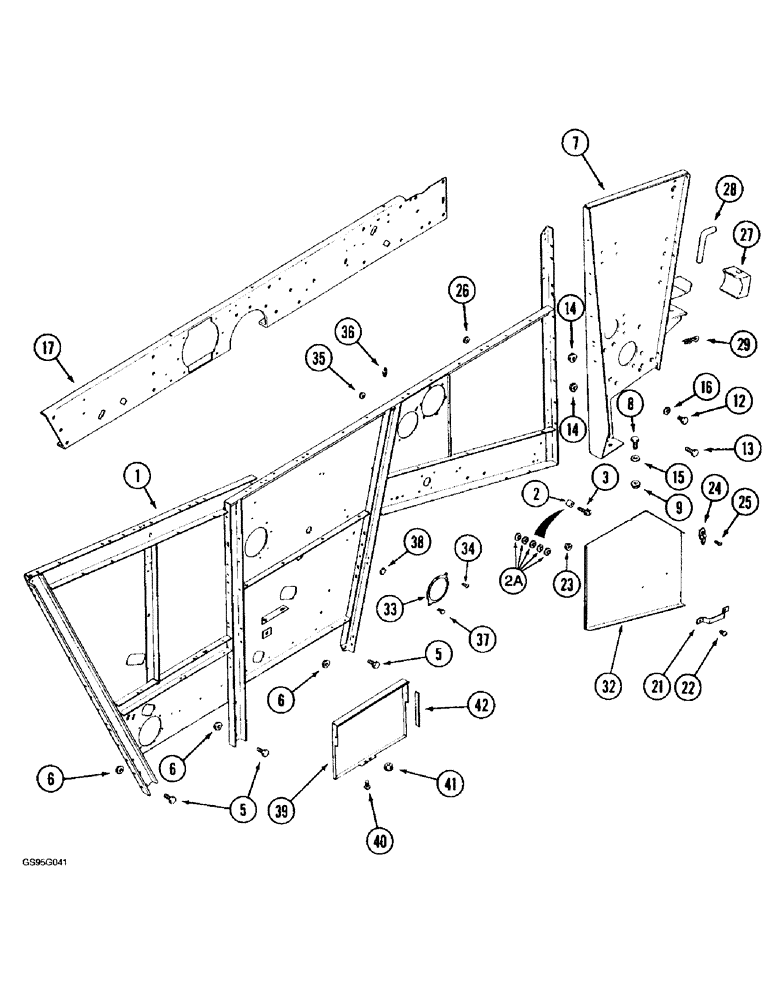

Запчасти Case IH 1670 (9H-04) - SEPARATOR DOORS, SIDE AND SUPPORTS, RIGHT HAND SIDE (12) - CHASSIS

1

1979785C1

SIDE ASSY.

SIDE - separator, right-hand

1шт.

2

272897R1

SPACER

- 1/2 x 1 inch pipe, if used

1шт.

2a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 X 13/16 x 1/16 inch, if used

5шт.

3

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

(Replaces bolt 187620C1) Hex Flg, 3/8"-16 x 1 1/2", Serr

1шт.

5

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

9шт.

6

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

9шт.

7

1304101C4

POST

- separator, right-hand

1шт.

8

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

6шт.

9

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

6шт.

12

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

4шт.

13

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

4шт.

14

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

8шт.

15

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened

2шт.

16

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/4 x 1/8 inch

6шт.

17

1330363C1

RESTRICTOR

SUPPORT - separator, right-hand side

1шт.

21

160638C1

HANDLE

- separator door

1шт.

22

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

2шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

24

167800C1

CLIP

- door retaining clip

4шт.

25

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

4шт.

26

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

27

1989327C1

RETAINER

BLOCK - feeder pivot (Replaces block193834C1)

1шт.

28

192533C2

ROD

- feeder pivot block

1шт.

29

1978738C1

HAIR PIN COTTER

3/16" diameter

1шт.

32

186199C91

DOOR

ASSEMBLY - separator, right-hand front, Includes danger decal

1шт.

179749C2

PRODUCT GRAPHIC

DECAL - Danger, do not open until engine and all mechanism have stopped, see figure 9H-36

1шт.

33

188315C1

DOOR

- access, belt drive cover

1шт.

34

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex serrated flange, 1/4 NC x 1/2 inch

1шт.

35

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

1шт.

36

126177

WING NUT

NUT - wing, 1/4 inch NC

1шт.

37

424-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- hex, 1/4 NC x 1/2 inch, grade 2

1шт.

38

353-414

PLUG,Dome, 1.375" Hole, Nylon

1шт.

39

181085C2

DOOR

- separator side

1шт.

40

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

5шт.

40

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

5шт.

41

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

42

1319395C1

CONDUIT

- convoluted, 12-1/8 inch long, cut from 1262114C1 bulk conduit, see below

1шт.

1262114C1

CONDUIT

- bulk, 31 inch (787 mm) long

1шт.
