Запчасти Case IH 1670 (9H-10) - SERVICE LADDER (12) - CHASSIS

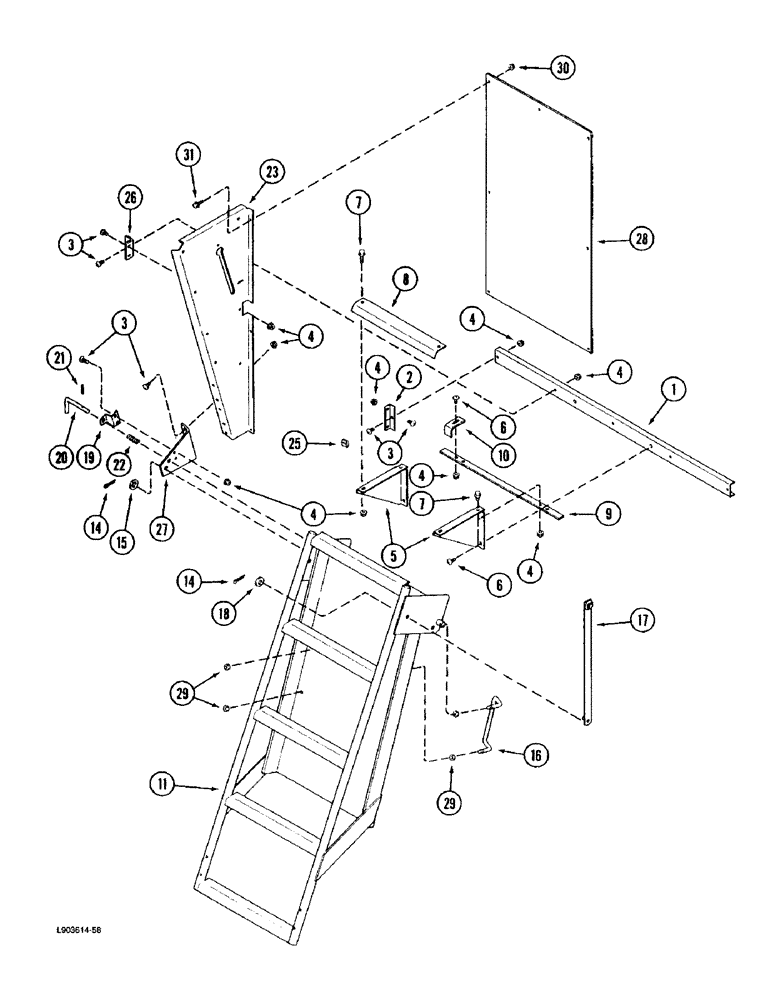

Схема запчастей Case IH 1670 - (9H-10) - SERVICE LADDER (12) - CHASSIS
10
16
2
4
14
17
18
6
28
7
8
27
9
29
20
5
11
3
3
29
30
4
4
1
25
21
6
4
22
26
23
3
4
19
14
31
7
15
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

185399C2

CHANNEL

- ladder upper support

1шт.

2

194311C1

ANGLE

BRACKET - mounting, upper support

2шт.

3

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

24шт.

3

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

24шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

29шт.

5

1347489C1

SUPPORT

BRACKET - upper step

2шт.

6

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

3шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

8

1327607C1

PLATE

STEP - angle, upper ladder

1шт.

9

1319722C1

BAR

- upper step support

1шт.

10

1321975C1

BRACKET

BAR - ladder stop

1шт.

11

1319766C91

LADDER

- rear service

1шт.

14

432-1212

COTTER PIN,3/16" x 3/4"

(Replaces pin 455516) 3/16" x 3/4"

4шт.

15

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

(Replaces washer 131016) 21/32" x 1 5/16" x .150", HDN

6шт.

16

1329715C1

HANDLE

- ladder

1шт.

17

1321698C1

LINK

- ladder slip

1шт.

18

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch (Replaces washer 178374R1)

2шт.

19

1319739C1

BRACKET

- ladder pin

1шт.

20

1319740C1

PIN

- ladder support

1шт.

21

138-2037

PIN,1/8" x 3/4", Coiled

- roll, 1/8 x 13/16 inch (Replaces pin 17078R1)

1шт.

22

540815R2

SPRING

- lock pin (Replaces spring 540815R1)

1шт.

23

185404C4

SIDE PLATE

BRACE - ladder, left-hand (Shown) (Replaces brace 185404C3)

1шт.

23

185405C4

SIDE PLATE

BRACE - ladder, right-hand (Replaces brace 185405C3)

1шт.

25

488837C1

SPRING NUT

- speed, 5/16 inch NC

4шт.

26

1327997C1

ANGLE

BRACKET - mounting, channel

2шт.

27

1319738C1

BRACKET

- ladder pivot

2шт.

28

186970C2

PLATE

SUPPORT - ladder

1шт.

29

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

30

92068R1

NUT

- Tinnerman, 1/2 inch

6шт.

31

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex serrated flange, 1/4 NC x 1/2 inch

6шт.
