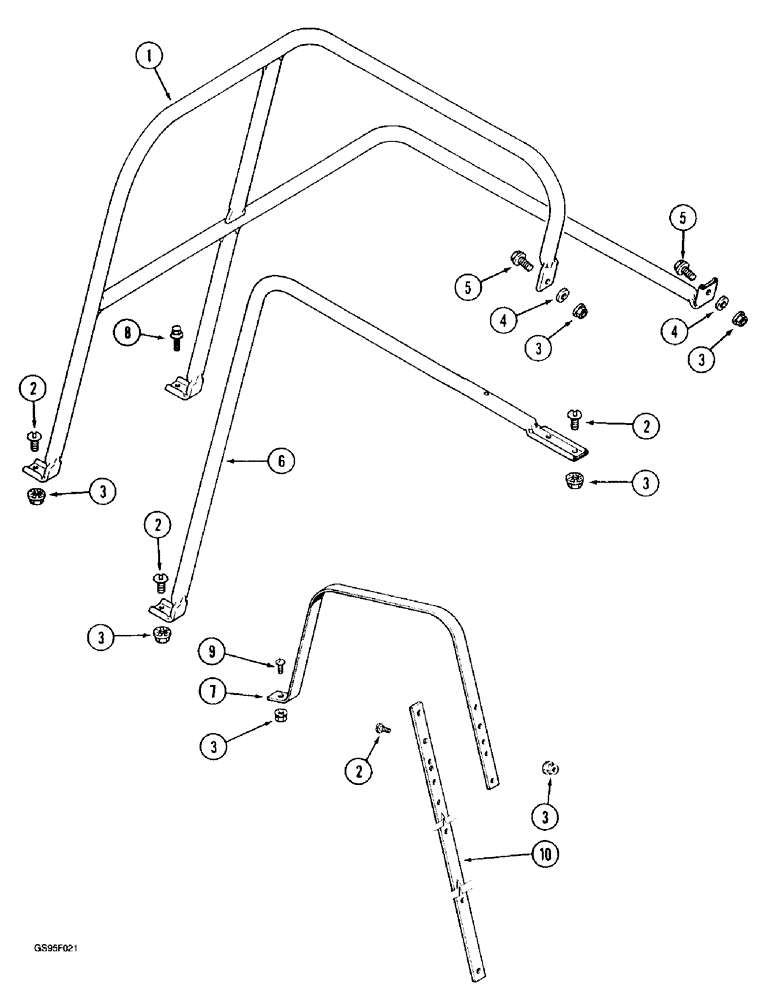

Запчасти Case IH 1670 (9H-14) - SERVICE DECK HAND RAILS (12) - CHASSIS

1

193089C2

GRAB RAIL

RAIL - hand, service deck, left-hand (Replaces rail 193089C1)

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

7шт.

2

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

7шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

4

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

2шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

6

196878C1

HOSE

RAIL - service deck, right-hand (Replaces rail 196858C1)

1шт.

7

1338059C2

RAIL

- service deck, deck to grain tank (Replaces rail 1338059C1)

1шт.

8

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

9

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

1шт.

10

1338058C3

BAR

- engine deck support

1шт.
