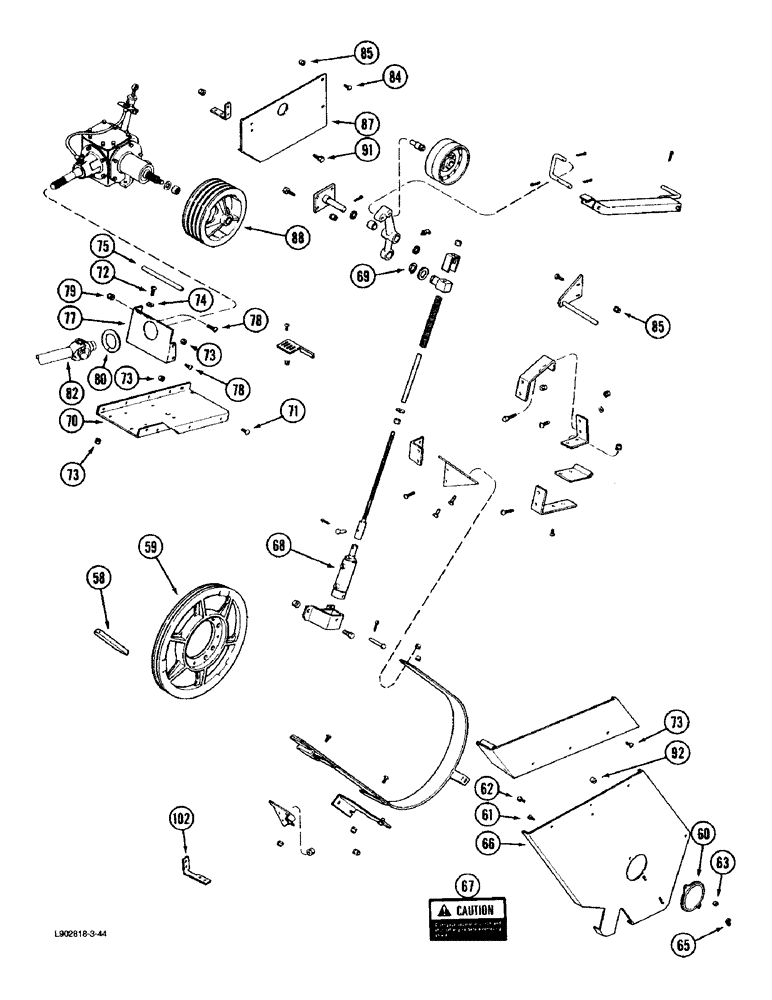

Запчасти Case IH 1670 (9A-24) - 1345131C1 FEEDER (13) - FEEDER

1

1345131C1

HOUSING ASSY.

HOUSING - feeder, with decals (Replaces housing 1347143C1)

1шт.

2

1314035C1

ANGLE

BRACKET - circle, left-hand

1шт.

2

1314036C1

ANGLE

BRACKET - circle, right-hand

1шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

4

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

3шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

7

188456

HOLE PLUG BUTTON,13/16"

PLUG - button, 3/16 inch diameter

1шт.

8

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

1шт.

9

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

1шт.

12

1327752C1

FOAM INSULATION

- side, left-hand

1шт.

12

1327753C1

FOAM INSULATION

- side, right-hand

1шт.

13

1321638C1

COVER

- upper front

1шт.

14

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

2шт.

15

425-1012

NUT,3/4"-10, G5

2шт.

16

634204R2

SEAL,55mm W x 942.8mm L

SEAL - feeder, top (Replaces seal 634204R1)

1шт.

17

197418C1

SUPPORT

ANGLE - seal support

1шт.

18

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

6шт.

19

231-5146

FLANGE NUT,3/8"-16

6шт.

20

197426C4

COVER

- upper

1шт.

21

180555C91

DOOR ASSY.

DOOR - feeder, upper, with decal

1шт.

22

175906C1

ROD

- hinge, door

1шт.

23

1322144C1

ANGLE

- door stop

2шт.

24

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

28

1321431C2

SUPPORT

- feeder, top

1шт.

29

1327737C2

PLATE

COVER - side

2шт.

30

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat, special, 17/32 x 1-1/2 x 3/16 inch

4шт.

31

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex, self-locking, special, 1/2 inch NC, grade 8

4шт.

32

1321504C1

SCREW,440mm L, W/ 3/4" - 10 Nut

BOLT - adjusting, level (Replaces bolt 1321395C1)

1шт.

33

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

2шт.

34

425-1012

NUT,3/4"-10, G5

1шт.

35

184645C1

CLIP

- latch, door

1шт.

36

411-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT - carriage, 3/8 NC x 2-1/4 inch, grade 2

1шт.

37

7422T

SPRING

- latch, door

1шт.

38

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

39

425-106

NUT,3/8"-16, Cl 5

1шт.

42

1327992C2

GUARD

SHIELD - sensor, feeder

1шт.

43

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

44

131-97

SPRING NUT,Tinn, U, 5/16"-18

- U-type, 5/16 inch NC (Replaces nut 403276R1)

2шт.
