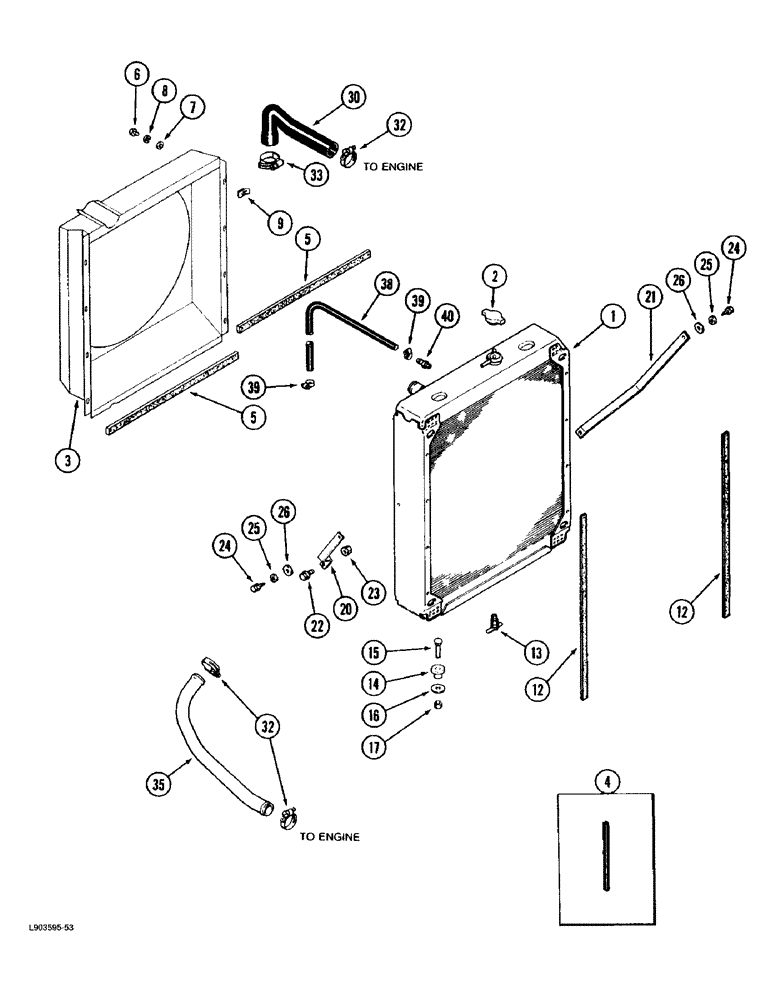

Запчасти Case IH 1670 (2-02) - RADIATOR AND FAN SHROUD (01) - ENGINE

1

A189470

RADIATOR

ASSEMBLY- cooling system, Includes: Ref. 2

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

1979889C1

GUARD

SHROUD - fan

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - radiator, 12-5/16 inch long, cut from 196707C1 bulk seal, see below

1шт.

5

1970457C2

SEAL

- radiator to shroud, 787 mm long, cut from 1319664C3 bulk seal, see below

1шт.

5

1979476C1

SEAL

- radiator to lower shroud, 730 mm long, cut from 1319664C3 bulk seal, see below

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

7

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

8шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

9

131-636

SPRING NUT,J, Ret, 5/16"-18

- J-type, 5/16 inch NC

8шт.

12

1970536C1

SEAL

- radiator to air chute, 875 mm, cut from 195917C2 bulk seal, see below

1шт.

13

86982771

VALVE

- drain, 1/4 inch PT

1шт.

14

R29799

SHOCK ABSORBER

INSULATOR - vibration, radiator, rubber

2шт.

15

411-732

BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

- carriage, 7/16 NC x 2 inch, grade 2

2шт.

16

495-81013

WASHER,.469" x 1 3/4" x .120"

4шт.

17

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

2шт.

20

1347184C1

SUPPORT

- radiator, rear

1шт.

21

1329863C1

SUPPORT

- radiator, left-hand

1шт.

22

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

2шт.

23

231-5146

FLANGE NUT,3/8"-16

2шт.

24

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

2шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

2шт.

26

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

4шт.

30

84549C2

RADIATOR HOSE,50.40 mm ID, 56.00 mm ID x 400.00 mm

- Engine outlet (Replaces hose 1329878C1) 50.40 mm ID, 56.00 mm ID x 400.00 mm

1шт.

32

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adj. 1.75/2.625 HD Worm, W/liner

3шт.

33

214-3248

HOSE CLAMP,57mm - 79mm

CLAMP, HOSE, , Adj. (Replaces clamp 1979481C1) 2.25/3.125 HD Worm, W/liner

1шт.

35

1979382C2

HOSE

- engine inlet (Replaces hose 1979382C1)

1шт.

38

1960764C1

RADIATOR HOSE,9.50 mm ID x 560.00 mm, SAE 20R3

Radiator vent to engine, If used 9.50 mm ID x 560.00 mm, SAE 20R3

1шт.

39

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

2шт.

40

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Adapter - straight 3/8" Hose X 1/4" NPTF Beaded

1шт.

196707C1

SEAL

- bulk, edge, 50 foot roll

1шт.

1319664C3

SEAL

- bulk, 50 foot roll

1шт.

195917C2

SEAL

SEAL - bulk, 50 foot roll

1шт.
