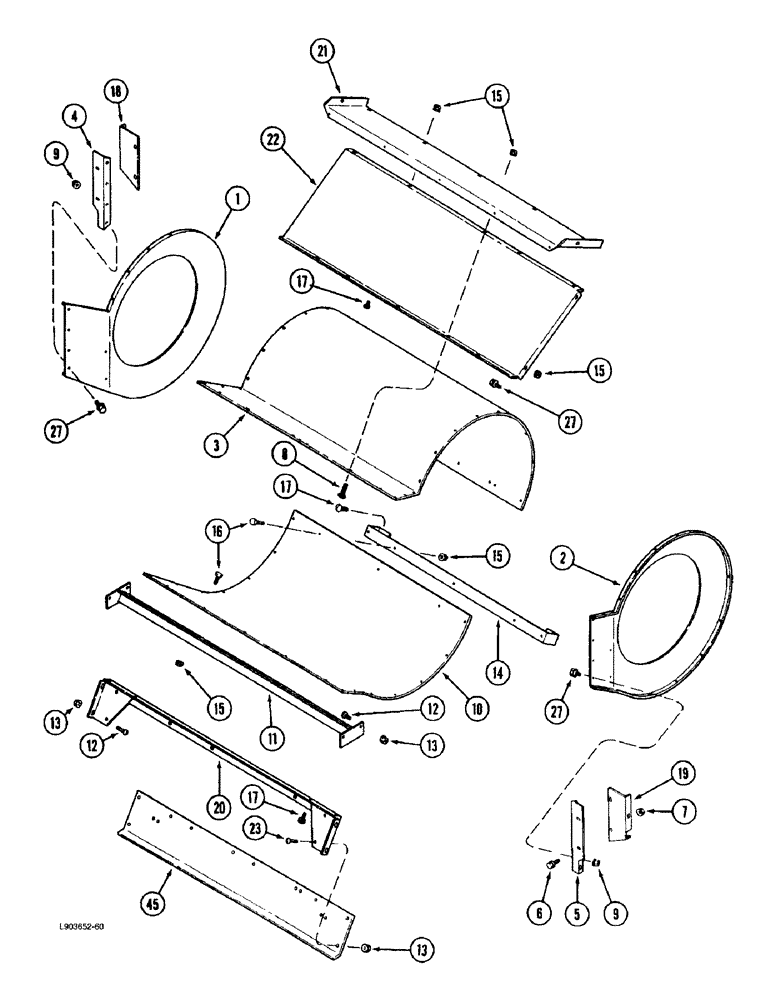

Запчасти Case IH 1670 (9C-06) - CLEANING FAN HOUSING (15) - BEATER & CLEANING FANS

1324001C91

KIT

HOUSING KIT - cleaning fan, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - fan, left-hand section

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - fan, right-hand section

1шт.

3

NSS

NOT SOLD SEPARAT

PANEL - top

1шт.

4

186713C2

KIT

EXTENSION - filler, left-hand

1шт.

5

186714C2

EXTENSION

- filler, right-hand

1шт.

6

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

32шт.

7

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

34шт.

8

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

13шт.

9

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, (Replaces nut 188471C1) Flg, 5/16"-18

33шт.

10

191702C1

SUPPORT

- fan housing, bottom

1шт.

11

191703C3

SUPPORT ASSY.

SUPPORT - fan housing, rear

1шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

12шт.

13

231-5146

FLANGE NUT,3/8"-16

22шт.

14

191706C1

SUPPORT

- fan support, front

1шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

54шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

17

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

25шт.

17

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

25шт.

18

186715C1

SUPPORT

- fan side sheet, left-hand

1шт.

19

186716C1

SUPPORT

- fan side sheet, right-hand

1шт.

20

194712C2

SUPPORT

- fan, bottom shield

1шт.

21

185042C1

SUPPORT

- chaffer front seal

1шт.

22

185043C1

SUPPORT

- pan to auger bed

1шт.

23

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

13шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

45

1304705C1

SUPPORT

- fan

1шт.
