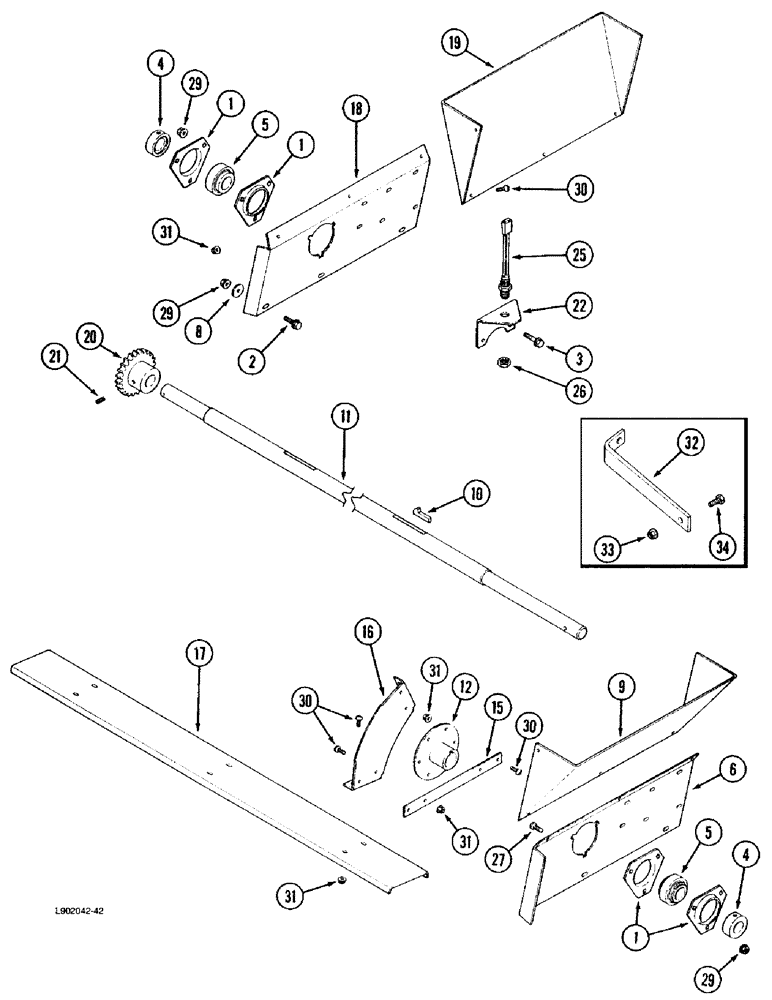

Запчасти Case IH 1670 (9C-08) - CLEANING FAN (15) - BEATER & CLEANING FANS

1

180955C1

FLANGED BEARING,0.375"

FLANGE - bearing, fan shaft

4шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

4шт.

3

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

- hex flange, special, 3/8 NC x 1-1/2 inch

2шт.

4

455104R11

COLLAR

- locking, bearing

2шт.

5

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- fan

2шт.

6

194396C1

SUPPORT

- fan shaft bearing, right-hand

1шт.

7

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

6шт.

8

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

6шт.

9

194398C3

SHIELD

SUPPORT - fan intake, right-hand, round-holed, if used

1шт.

9

183472C1

SUPPORT

- fan intake, right-hand, slotted-holed, if used

1шт.

10

Q1497

KEY,Gib, 3/8" Sq x 2"

- square gib, 3/8 x 2 inch

3шт.

11

1309016C2

SHAFT

- cleaning fan (Replaces shaft 1209016C1)

1шт.

12

185480C1

HUB ASSY.

HUB - fan

2шт.

15

185483C1

BAR

- fan

12шт.

16

185484C1

SUPPORT

- cleaning fan blade

12шт.

17

182928C1

BLADE

- cleaning fan

6шт.

18

194395C1

SUPPORT

- fan shaft bearing, left-hand

1шт.

19

194397C3

SHIELD

SUPPORT - fan intake, left-hand, round-holed, if used (Replaces support 1311164C1)

1шт.

19

183471C1

SUPPORT

- fan intake, left-hand, slotted-holed, if used

1шт.

20

1979818C1

PINION

SPROCKET - fan speed tachometer

1шт.

21

483-13812

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW - headless cup point, 3/8 NC x 3/4 inch

1шт.

22

1301240C2

SUPPORT

- fan speed tachometer

1шт.

25

245193C2

SENSOR

ASSEMBLY- reluctance pickup, Includes: Ref. 26

1шт.

26

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NF

1шт.

27

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

3шт.

29

231-5146

FLANGE NUT,3/8"-16

12шт.

30

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

1шт.

30

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

1шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

32

182875C1

SUPPORT

- fan bearing, right-hand

1шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

34

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

2шт.

34

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

2шт.
