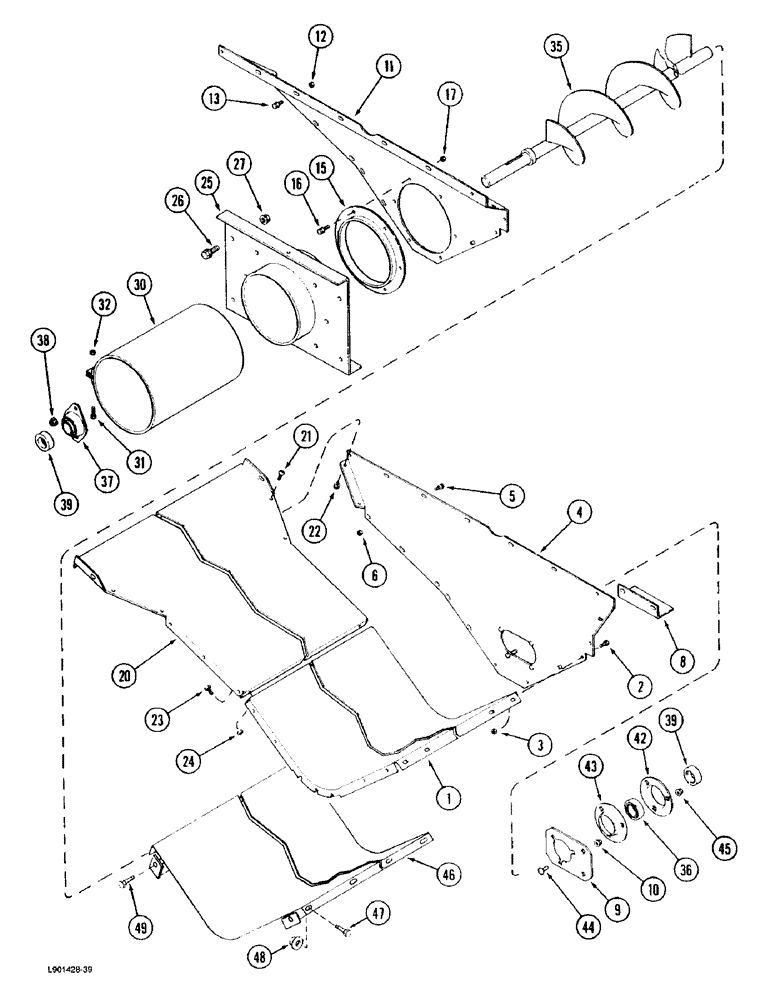

Запчасти Case IH 1670 (9D-04) - GRAIN AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS

1

1317424C1

TROUGH

- bottom, perforated

1шт.

1

1317408C1

PLATE

TROUGH - bottom, not perforated

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

12шт.

3

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, (Replaces nut 188471C1) Flg, 5/16"-18

12шт.

4

188284C1

SUPPORT

- trough, left-hand

1шт.

5

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

6

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, (Replaces nut 188471C1) Flg, 5/16"-18

7шт.

8

1317418C1

ANGLE

- trough support, left-hand

1шт.

9

186717C1

PLATE

SUPPORT - collecting auger, left-hand

1шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

11

194563C1

SUPPORT

- trough, right-hand

1шт.

12

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, (Replaces nut 188471C1) Flg, 5/16"-18

7шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

15

188285C1

RETAINER

- trough support, right-hand

1шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

17

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, (Replaces nut 188471C1) Flg, 5/16"-18

6шт.

20

191716C1

EXTENSION

SUPPORT - extension, trough

1шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

12шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

5шт.

24

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, (Replaces nut 188471C1) Flg, 5/16"-18

5шт.

25

1330372C2

SUPPORT

- tube, trough

1шт.

26

1302142C1

BOLT,Flng, 1/2" - 13 x 1-1/4"

BOLT - hex flange, special, 1/2 NC x 1-1/4 inch, if used

1шт.

26

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1/2 NC x 1 inch, if used

9шт.

27

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

10шт.

30

1317454C1

CLAMP

- auger trough, perforated

1шт.

30

1317452C1

CLAMP

- auger trough, non-perforated

1шт.

31

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch, use with perforated trough

3шт.

31

424-516

BOLT,Hex, 5/16" - 18 x 1", Gr 2

- hex, 5/16 NC x 1 inch, grade 2, use with non-perforated trough

3шт.

32

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

3шт.

35

1317484C1

AUGER

- grain

1шт.

36

156011C92

BALL BEARING

BEARING - auger, left-hand

1шт.

37

1317250C91

FLANGED BEARING,31.75mm ID

BEARING - auger, right-hand

1шт.

38

231-5146

FLANGE NUT,3/8"-16

2шт.

39

557995R11

COLLAR

- bearing, with set screw

2шт.

42

939460R91

FLANGE

- bearing, with 45 degree lubrication fitting

1шт.

43

939461R1

FLANGE

- bearing, grooved

1шт.

44

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

45

231-5146

FLANGE NUT,3/8"-16

3шт.

46

1317426C1

COVER

- grain trough, use with perforated bottom trough

1шт.

47

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

14шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

14шт.

49

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - self-tapping, hex washer head, 5/16 NC x 1 inch

4шт.
