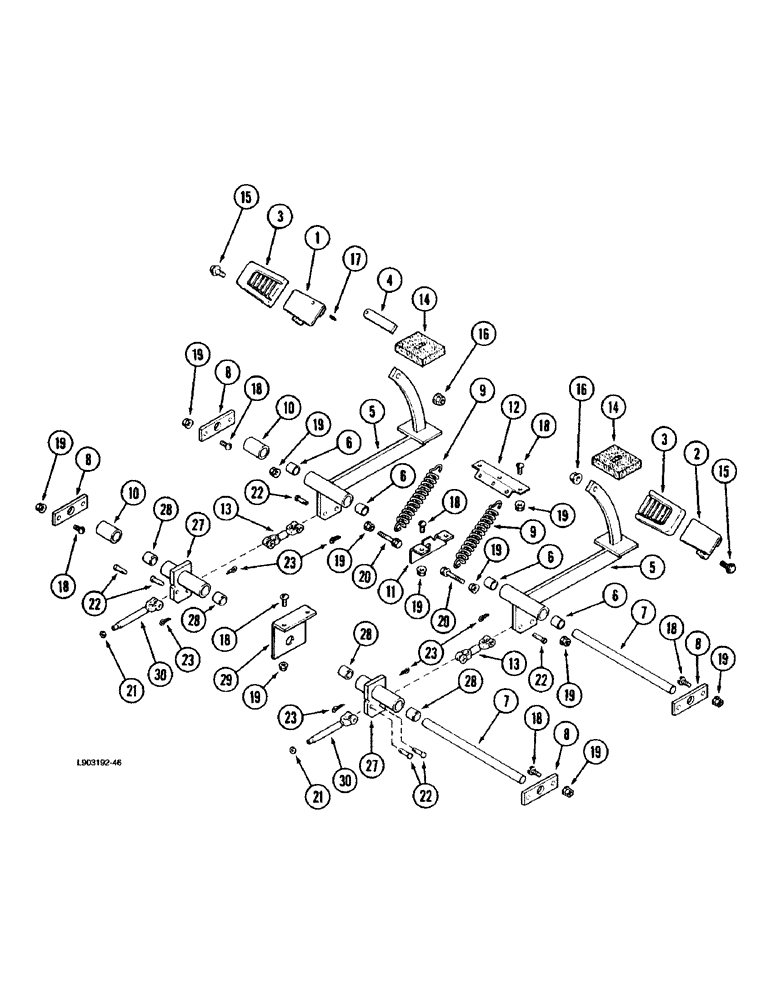

Запчасти Case IH 1670 (7-02) - MASTER BRAKE CONTROLS (5.1) - BRAKES

1

1321926C1

PEDAL

- brake, left-hand (Replaces pedal 1979734C1)

1шт.

2

1321927C1

PEDAL

- brake, right-hand (Replaces pedal 1979733C1)

1шт.

3

863426R1

PAD

- pedal

2шт.

4

614251R1

BAR

- brake locking

1шт.

5

1321925C91

SUPPORT

ASSEMBLY - brake pedal, Includes: Ref. 6

2шт.

6

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- pedal support, 3/4 inch (19 mm) diameter

2шт.

7

1280117C1

SHAFT

- support pivot

2шт.

8

1281794C1

PLATE

BAR - pivot shaft support

4шт.

9

398763R2

SPRING

- pedal return

2шт.

10

1280116C1

SPACER

- support pivot

2шт.

11

1321383C1

ANGLE

- support

1шт.

12

1327560C1

ANGLE

- spring hook

1шт.

13

1331281C1

LINK

- brake

2шт.

14

1321935C1

SEAL

- pedal

2шт.

15

1327764C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/4"

BOLT - hex flange, polyseal, black, 3/8 NC x 1-1/4 inch

2шт.

16

1327765C1

LOCK NUT

- hex flange, self-locking, black, 3/8 inch NC

2шт.

17

19372R1

PIN,3.17mm OD x 22.23mm L, Coiled

1шт.

18

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch, if used

11шт.

18

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

If used Hex Flg, 5/16"-18 x 1", Serr

11шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

15шт.

20

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

21

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10 (Replaces nut 30168R1)

2шт.

22

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened 3/8" x 1 1/16"

6шт.

23

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

6шт.

27

1331287C1

SUPPORT

ASSEMBLY - brake pedal, Includes: Ref. 28

2шт.

28

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- support, 3/4 inch (19 mm) diameter

2шт.

29

1331274C1

ANGLE

BRACKET - brake support

1шт.

30

1331282C1

ROD

LINK - brake

2шт.
