(2-16) - FRONT GEAR COVER, 6TA-830 ENGINE

Запчасти Case IH 1670 (2-16) - FRONT GEAR COVER, 6TA-830 ENGINE (01) - ENGINE

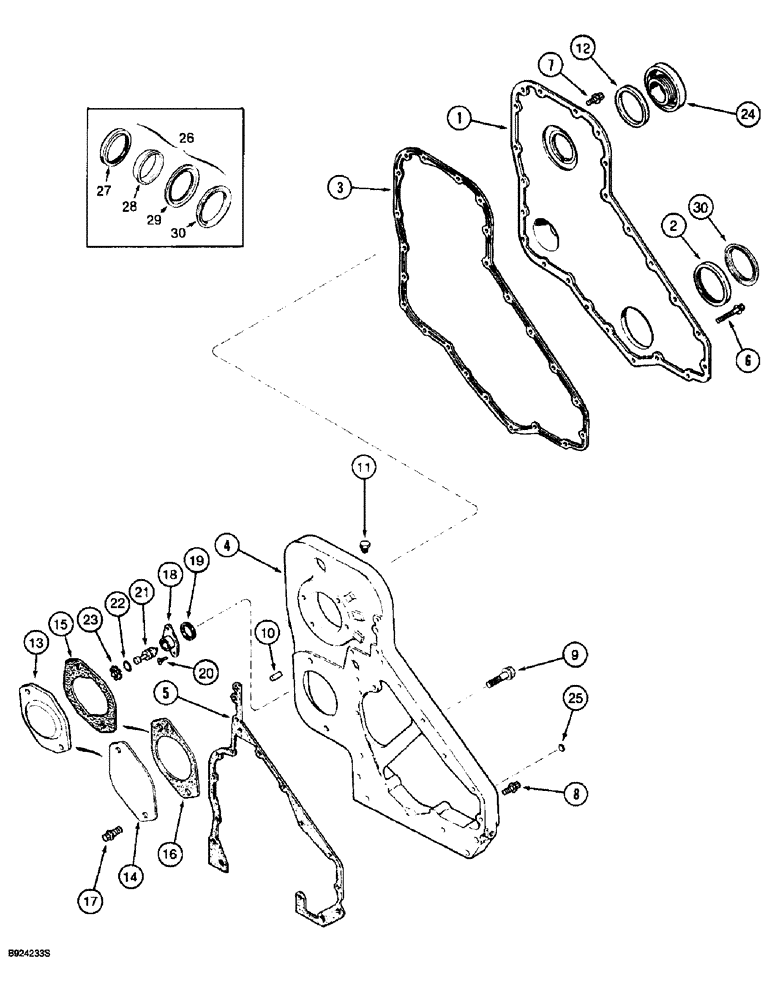

Схема запчастей Case IH 1670 - (2-16) - FRONT GEAR COVER, 6TA-830 ENGINE (01) - ENGINE
26
20
11
28
1
17
19
27
30
21
12
15
18
14
24
29
5
8
13
25
22
4
6
16
10
7
9
2
23
30
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J924422

COVER ASSY

COVER - gear, front, replaces J916192 cover

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front, order Ref. 24, A77790 kit below

1шт.

3

J917779

GASKET,0.98mm Thk

- front gear cover

1шт.

4

J917316

MOTOR HOUSING

HOUSING - gear

1шт.

5

J281721

GASKET

- housing, gear, replaces J914303 gasket

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm

6шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

17шт.

8

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

5шт.

9

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

4шт.

10

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long

2шт.

11

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

3шт.

12

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.

13

J909918

PLATE

- access cover, indented, no longer available, for service order J914868 plate, Ref. 14

1шт.

14

J914868

COVER

PLATE - access cover, flat

1шт.

15

J913288

SEAL

GASKET - access cover plate, no longer available, for service order J919601 gasket, Ref. 16

1шт.

16

J919601

GASKET

- access cover plate

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

18

J919683

HOUSING

- timing pin, replaces J905933 housing

1шт.

19

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing

1шт.

20

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

21

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

22

J913994

O-RING

- sealing, timing pin

1шт.

23

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

24

J903463

PLUG,M63 x 5

- front access

1шт.

25

A77552

PLUG

- expansion, 29/64 inch diameter

1шт.

26

A77790

SEAL KIT

KIT - oil seal, crankshaft front, Includes: Ref. 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

28

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

29

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

30

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust

1шт.
