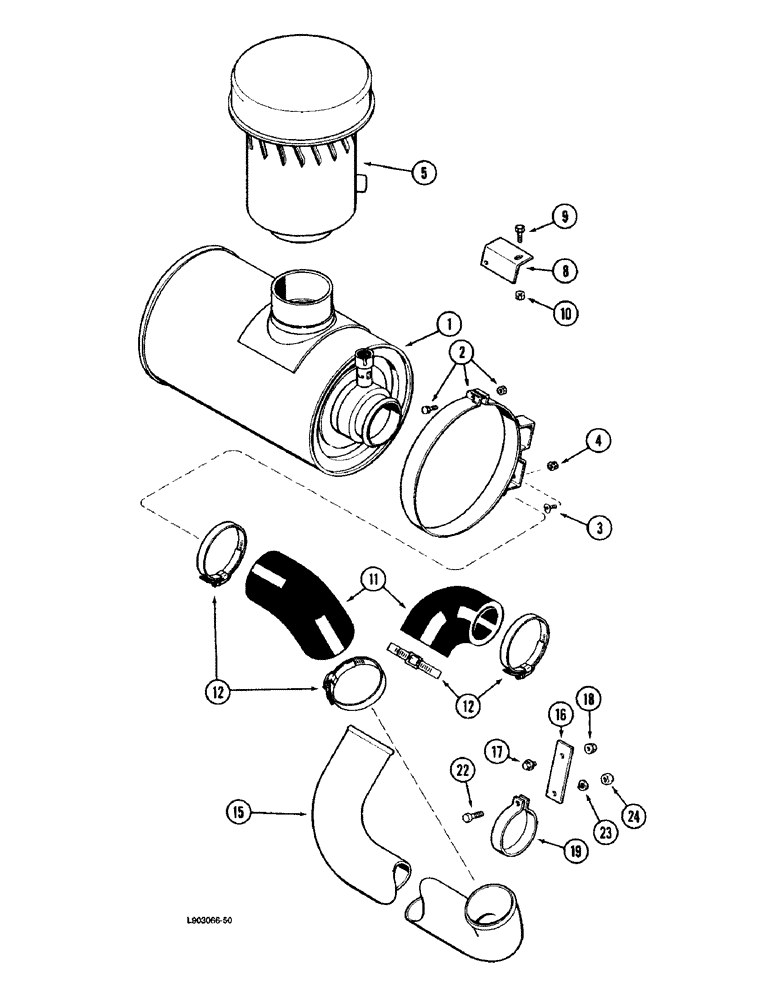

Запчасти Case IH 1670 (2-18) - AIR INDUCTION SYSTEM (01) - ENGINE

1

1541611C1

AIR CLEANER

CLEANER ASSEMBLY - air, engine, parts list Figure 2-20

1шт.

2

A56089

SUPPORT

BAND - air cleaner mounting (Replaces band 259922C91)

2шт.

3

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

4шт.

4

231-5146

FLANGE NUT,3/8"-16

4шт.

5

1275728C3

PRECLEANER

- air (Replaces precleaner 1275728C1)

1шт.

8

1970448C1

SUPPORT

- air cleaner

1шт.

9

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

11

218899R1

ELBOW

HOSE - elbow

2шт.

12

146570C1

CLAMP

- hose, No. 72 type F

4шт.

15

1970445C1

AIR INTAKE TUBE

TUBE - outlet

1шт.

16

187509C1

BAR

- header lift tubes

1шт.

17

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

19

1970473C1

CLAMP

- inlet tube retaining

1шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

23

492-11038

LOCK WASHER,3/8"

1шт.

24

425-106

NUT,3/8"-16, Cl 5

1шт.
