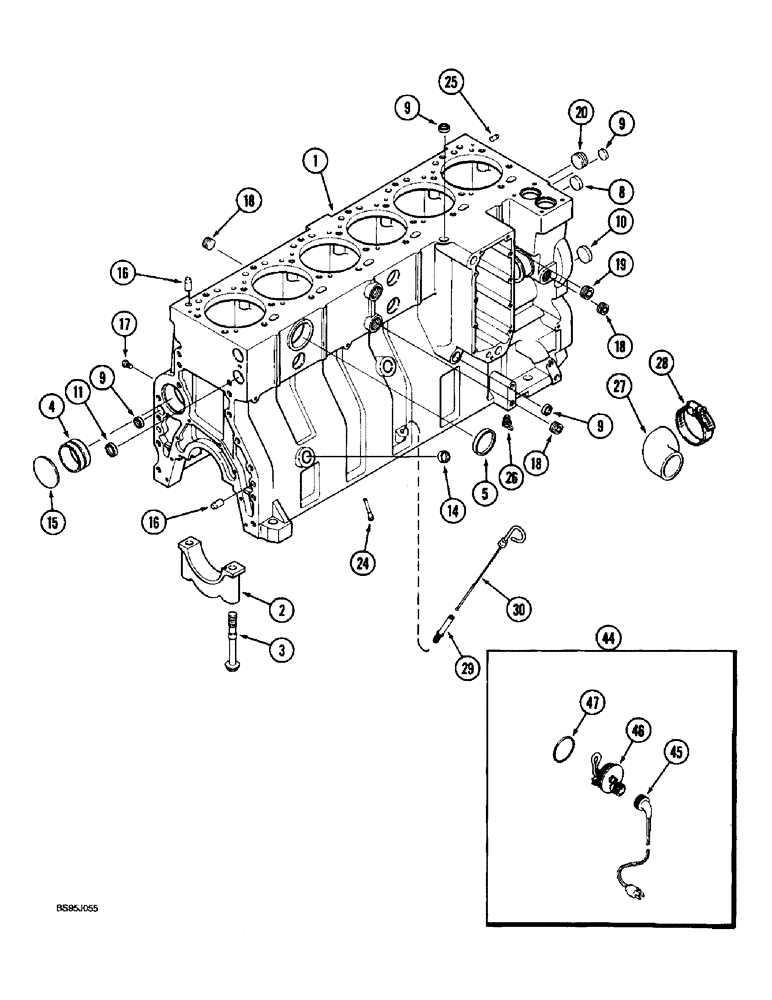

Запчасти Case IH 1670 (2-44) - CYLINDER BLOCK, 6TA-830 ENGINE, BLOCK WITH SIX PISTON COOLING NOZZLES, ENGINE BLOCK HEATER (01) - ENGINE

A174327

ENGINE ASSEMBLY

- complete, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order engine below, Includes: Ref. 1 - 10

1шт.

JR925187

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, replaces JR913779 remanufactured block assembly, Includes: Ref. 1 - 10

1шт.

JC913779

SKELETON ENGINE

RETURN NUMBER - use this part number to return engine core for credit when using a remanufactured assembly, Includes: Ref. 1 - 10

1шт.

JR911898

ENGINE, EXCHANGE

BLOCK ASSEMBLY - stripped, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, no longer available, for service order J920036 stripped block assembly, Includes: Ref. 1 - 10

1шт.

JC911898

SKELETON ENGINE

RETURN NUMBER - use this part number to return stripped block core for credit when using a remanufactured assembly, Includes: Ref. 1 - 10

1шт.

J926151

SKELETON ENGINE

BLOCK ASSEMBLY - short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 1 - 10

1шт.

1

J920036

CYLINDER BLOCK

BLOCK ASSEMBLY - cylinder, stripped, new, replaces J911898 stripped block

1шт.

2

J905397

CAP

- main bearing

7шт.

3

J906655

BOLT,Flng, M14 x 2 x 128.5mm, Cl 12.9

- hex flange, special, bearing cap

14шт.

4

REF

INSTRUCTION

BUSHING - camshaft, see figure 2-42, Ref. 6

7шт.

5

A77782

PLUG

- expansion, 58 mm O.D., replaces J900965 plug

1шт.

8

A77586

PLUG

- expansion, 28.9 mm O.D.

1шт.

9

A77506

PLUG

- expansion, 21 mm O.D.

4шт.

10

J905401

PLUG

- expansion, 35 mm O.D.

4шт.

J909415

KIT

- block hardware, no longer available, order components separately

1шт.

11

A77530

PLUG

- expansion, 30 mm O.D.

2шт.

14

A77439

PLUG

- expansion, 22 mm O.D.

1шт.

15

41-3044

PLUG,Exp, 2 3/4"

Replaces J901969 plug Exp, 2 3/4"

1шт.

16

J901846

PIN,12.01mm OD x 24mm L

- dowel

4шт.

17

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

6шт.

18

A77429

PLUG

- hex socket, 1/2 inch PT

4шт.

19

A77505

PLUG

- hex socket, 3/4 inch PT

1шт.

20

A77533

PLUG

- hex socket, 1 inch PT

1шт.

24

J905928

NOZZLE INJECTION

NOZZLE - piston cooling

6шт.

25

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long

2шт.

26

217-103

COCK, DRAIN

VALVE - 1/4 inch PT, replaces A77425 valve

1шт.

27

J920762

ELBOW

HOSE - elbow, replaces J909389 hose, with six piston cooling nozzles

1шт.

28

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj, 2-1/16 - 3 inch dia., with six piston cooling nozzles

1шт.

29

J905425

TUBE,9.52 mm OD x 93 mm L

- dipstick, oil, with six piston cooling nozzles

1шт.

30

J906757

DIPSTICK

- oil gauge, with six piston cooling nozzles

1шт.

44

A77595

KIT

- engine block heater, Includes: Ref. 45 - 47

1шт.

45

J905113

CABLE

- engine block heater, 6 feet long

1шт.

46

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volts, engine block

1шт.

47

J910517

O-RING

- heater sealing, engine block

1шт.
