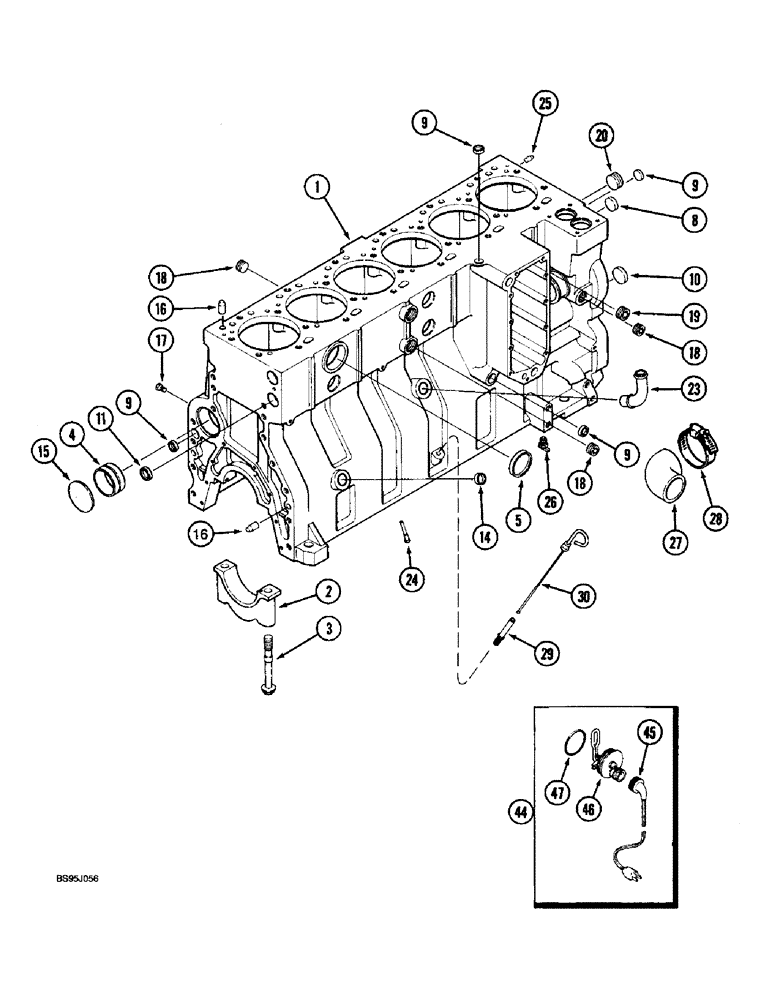

Запчасти Case IH 1670 (2-48) - CYLINDER BLOCK, 6TA-830 ENGINE, WITH TWELVE PISTON COOLING NOZZLES, PRIOR TO ENGINE S/N 44487830 (01) - ENGINE

1989016C2

ENGINE ASSEMBLY

- complete, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order basic engine below, Includes: Ref. 1 - 10

1шт.

AR174359

ENGINE, EXCHANGE

ENGINE ASSEMBLY - remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 10

1шт.

AC174359

CORE-ENGINE

RETURN NUMBER - use this part number to return engine core for credit when using a remanufactured assembly, Includes: Ref. 1 - 10

1шт.

A174359

BASIC ENGINE

ENGINE ASSEMBLY - basic, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, dipstick, fuel injection pump, injectors and lines, front pulley, belt tensioner, turbocharger and after

1шт.

JR919557

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 10

1шт.

JC919557

CORE-ENGINE

RETURN NUMBER - use this part number to return short block for credit when using a remanufactured assembly, Includes: Ref. 1 - 10

1шт.

J919557

SKELETON ENGINE

BLOCK ASSEMBLY - short, new, includes stripped block, pistons, connecting rods and bearing, crankshaft and bearing, Includes: Ref. 1 - 10

1шт.

JR919374

CRANKCASE

BLOCK ASSEMBLY - stripped, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 10

1шт.

JC919374

CORE-ENGINE

RETURN NUMBER - use this part number to return stripped core for credit when using a remanufactured assembly, Includes: Ref. 1 - 10

1шт.

1

J919374

BLOCK

ASSEMBLY - cylinder, stripped, new

1шт.

2

J917313

BEARING CAP

CAP - bearing, main

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

SCREW, Hex Flg Hd, M14 x 128

14шт.

4

REF

INSTRUCTION

BUSHING - camshaft, see figure 2-42, Ref. 6

7шт.

5

J900965

PLUG

- expansion, 58 mm O.D.

1шт.

8

A77586

PLUG

- expansion, 28.9 mm O.D.

1шт.

9

A77506

PLUG

- expansion, 21 mm O.D.

4шт.

10

J905401

PLUG

- expansion, 35 mm O.D.

4шт.

A77716

BLOCK

KIT - block hardware, no longer available, order components separately, Includes: Ref. 11 - 26

1шт.

11

A77530

PLUG

- expansion, 30 mm O.D.

2шт.

14

A77439

PLUG

- expansion, 22 mm O.D.

1шт.

15

41-3044

PLUG,Exp, 2 3/4"

Replaces J901969 plug Exp, 2 3/4"

1шт.

16

J901846

PIN,12.01mm OD x 24mm L

- dowel

4шт.

17

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

6шт.

18

A77429

PLUG

- hex socket, 1/2 inch PT

4шт.

19

A77505

PLUG

- hex socket, 3/4 inch PT

2шт.

20

A77533

PLUG

- hex socket, 1 inch PT

1шт.

23

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

24

J919003

NOZZLE INJECTION

NOZZLE - piston cooling

12шт.

25

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long

2шт.

26

217-103

COCK, DRAIN

VALVE - 1/4 inch PT, replaces A77425 valve

1шт.

27

J918176

HOSE,7.90 mm ID x 330.00 mm

with Twelve Piston Cooling Nozzles Prior to Engine Serial Number 44487830 7.90 mm ID x 330.00 mm

1шт.

28

D140877

HOSE CLAMP,#6, 0.44/0.78 Type M Worm

CLAMP - adjustable, with twelve piston cooling nozzles prior to engine serial number 44487830

1шт.

29

J905425

TUBE,9.52 mm OD x 93 mm L

- dipstick, oil, with twelve piston cooling nozzles prior to engine serial number 44487830

1шт.

30

J906757

DIPSTICK

- oil gauge, with twelve piston cooling nozzles prior to engine serial number 44487830

1шт.

44

A77595

KIT

- engine block heater, Includes: Ref. 45 - 47

1шт.

45

J905113

CABLE

- engine block heater, 6 feet long

1шт.

46

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volts, engine block

1шт.

47

J910517

O-RING

- heater sealing, engine block

1шт.
