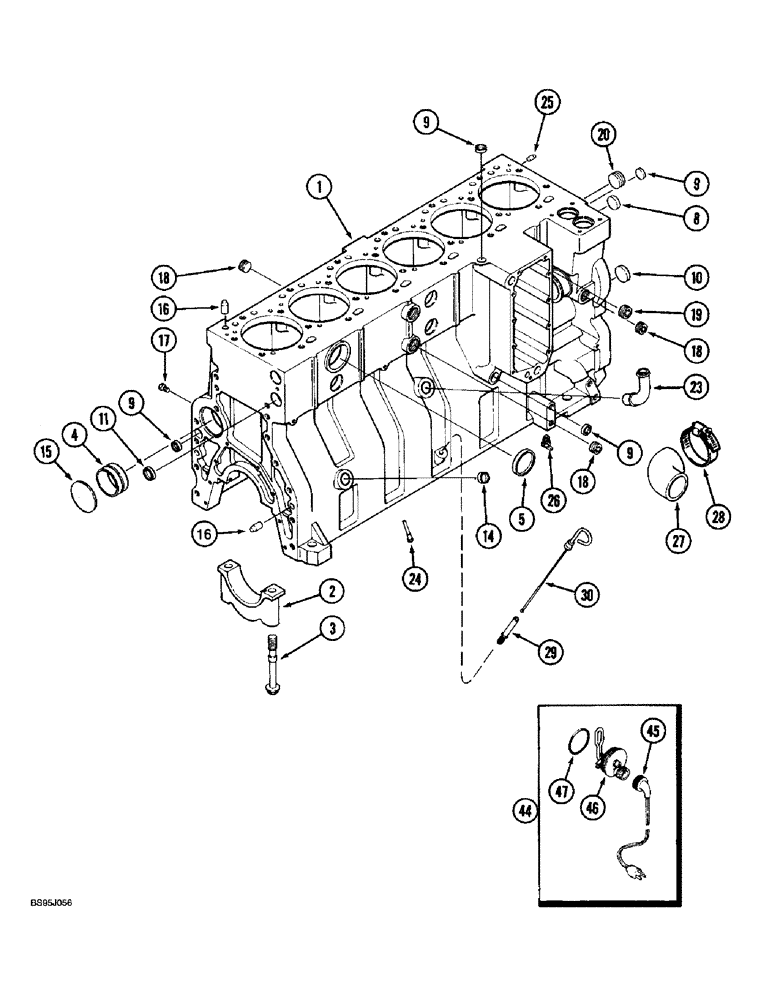

Запчасти Case IH 1670 (2-51A) - CYLINDER BLOCK, 6TA-830 ENG., BLOCK WITHTWELVE PISTON COOLING N0ZZLES, ENGINE S/N 44487830 AND AFTER (01) - ENGINE

1989023C3

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order basic engine below, Includes: Ref. 1 - 10

1шт.

1989023C3R

REMAN-REPLACEMENT EN

1670 S/N JJC0080540 & After

1шт.

6TA-830C

CORE-REPLACEMENT ENG

Return Part Number, KNOWN POTENTIAL CORE VARIATIONS, REFER TO CORE CRITERIA FOR PROPER CORE IDENTIFICATION

1шт.

1989099C2

BASIC ENGINE

ENGINE ASSEMBLY - basic, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel & housing, dipstick, fuel injection pump, injectors & lines, front pulley, belt tensioner, turbocharger & aftercooler

1шт.

AR174399

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

AC174399

CORE-BASIC ENGINE

Return Part Number, KNOWN POTENTIAL CORE VARIATIONS, REFER TO CORE CRITERIA FOR PROPER CORE IDENTIFICATION

1шт.

JR921839

BLOCK

BLOCK ASSEMBLY - short, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 10

1шт.

J926151

SKELETON ENGINE

BLOCK ASSEMBLY - short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, replaces J921839 short block assembly, Includes: Ref. 1 - 10

1шт.

1

J926145

CRANKCASE

BLOCK ASSEMBLY - stripped engine, new, replaces J919934 stripped block assembly

1шт.

2

J917313

BEARING CAP

CAP - bearing, main

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

SCREW, Hex Flg Hd, M14 x 128

14шт.

4

REF

INSTRUCTION

BUSHING - camshaft, see figure 2-42, Ref. 6

7шт.

5

A77782

PLUG

PLUG - expansion, 58 mm O.D.

1шт.

8

A77586

PLUG

PLUG - expansion, 28.9 mm O.D.

1шт.

9

A77506

PLUG

PLUG - expansion, 21 mm O.D.

4шт.

10

J905401

PLUG

PLUG - expansion, 35 mm O.D.

4шт.

A77716

BLOCK

KIT - block hardware, no longer available, order components separately, Includes: Ref. 11 - 30

1шт.

11

A77530

PLUG

PLUG - expansion, 30 mm O.D.

2шт.

14

A77439

PLUG

PLUG - expansion, 22 mm O.D.

1шт.

15

41-3044

PLUG,Exp, 2 3/4"

PLUG, , Replaces J901969 plug Exp, 2 3/4"

1шт.

16

J901846

PIN,12.01mm OD x 24mm L

PIN - dowel

4шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

6шт.

18

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

4шт.

19

A77505

PLUG

PLUG - hex socket, 3/4 inch PT

2шт.

20

A77533

PLUG

PLUG - hex socket, 1 inch PT

1шт.

23

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

24

J919003

NOZZLE INJECTION

NOZZLE - piston cooling

12шт.

25

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

26

217-103

COCK, DRAIN

VALVE - 1/4 inch PT, replaces A77425 plug

1шт.

27

J918176

HOSE,7.90 mm ID x 330.00 mm

Block with Twelve Piston Cooling Nozzles

1шт.

28

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

CLAMP, HOSE, , Adjustable, Replaces D140877 clamp #6, 0.44/0.78 Type M Worm

1шт.

29

J905425

TUBE,9.52 mm OD x 93 mm L

TUBE - dipstick, oil

1шт.

30

J906757

DIPSTICK

DIPSTICK - oil gauge

1шт.

44

A77595

KIT

KIT - engine block heater, Includes: Ref. 45 - 47

1шт.

45

J905113

CABLE

CABLE - engine block heater, 6 feet long

1шт.

46

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volts, engine block

1шт.

47

J910517

O-RING

O-RING - heater sealing, engine block

1шт.
