(2-56) - FLYWHEEL AND BACKING PLATE, 6TA-830 ENGINE

Запчасти Case IH 1670 (2-56) - FLYWHEEL AND BACKING PLATE, 6TA-830 ENGINE (01) - ENGINE

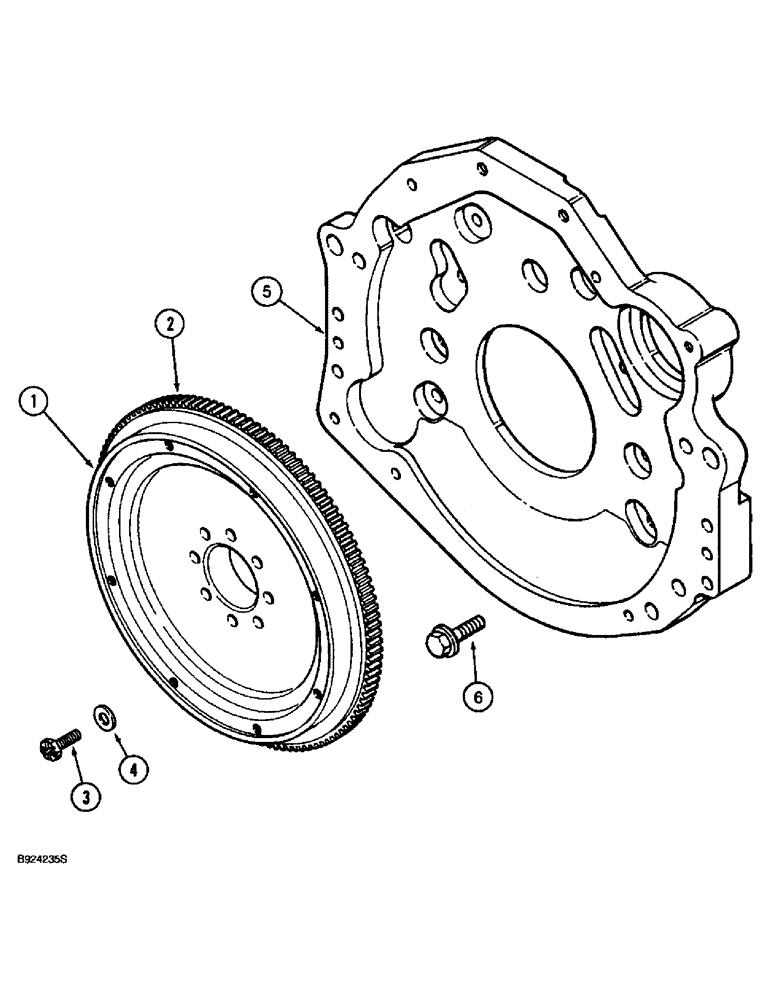

Схема запчастей Case IH 1670 - (2-56) - FLYWHEEL AND BACKING PLATE, 6TA-830 ENGINE (01) - ENGINE
2
4
1
3
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J917052

FLYWHEEL

ASSEMBLY - engine, replaces J915096 flywheel assembly, Includes: Ref. 2

1шт.

2

J905427

GEAR

- ring, flywheel

1шт.

3

J908181

SCREW,Hex, M12 x 1.25 x 50mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 50 mm

8шт.

4

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special

8шт.

7

J913593

PLATE

- backing

1шт.

8

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9

10шт.
