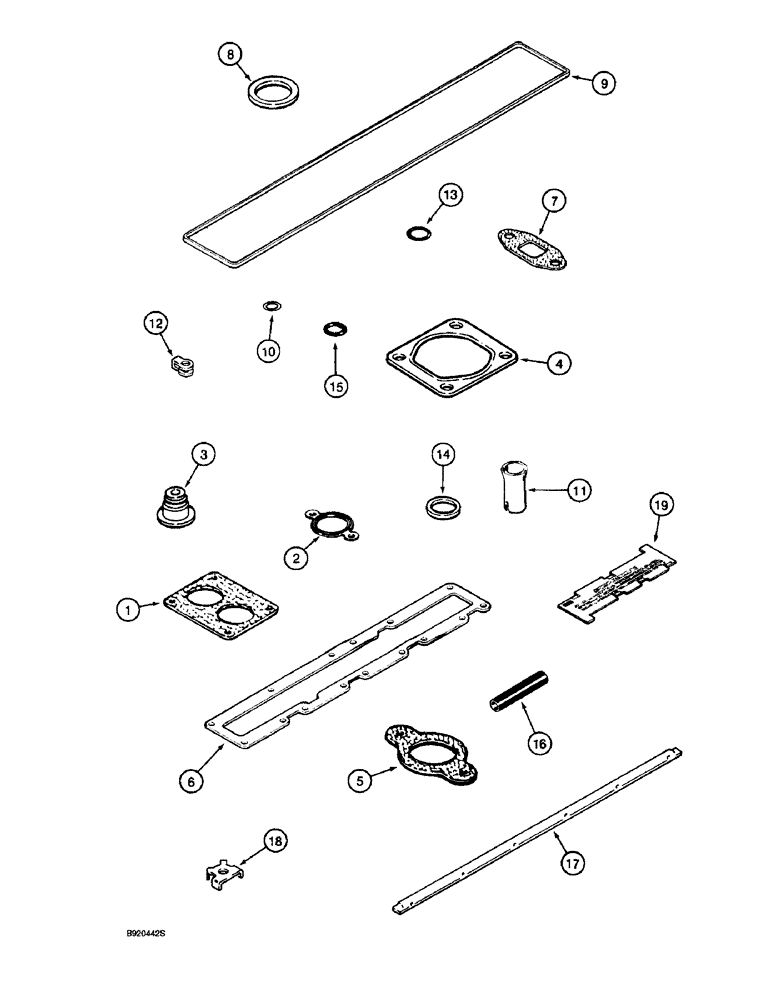

Запчасти Case IH 1670 (2-60) - VALVE GRIND GASKET KIT, 6TA-830 ENGINE (01) - ENGINE

A77794

GASKET KIT

KIT - gasket, valve grind, replaces A77678 kit, Includes: Ref. 1 - 19

1шт.

When the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 2-36.

1шт.

1

J914310

GASKET,0.8mm Thk

- thermostat housing

1шт.

2

J918779

GASKET,1.19mm Thk

- outlet tube, water, replaces A77705 gasket

1шт.

3

J915707

SEAL

- intake and exhaust valve stem and guide, replaces J912550 intake seal and J912549 exhaust seal

12шт.

4

J911941

GASKET

- mounting, turbocharger

1шт.

5

J921787

GASKET

- exhaust manifold, 1.0 mm thick, replaces J911942 gasket (set of 6)

1шт.

6

J914311

MANIFOLD GASKET

- intake manifold aftercooler

1шт.

7

J914388

GASKET

- turbo oil drain tube

1шт.

8

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing, oil fill cap to valve cover

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

SEAL - valve cover

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

12

J903380

SEAL

- connector, fuel injection nozzles

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Breather tube connection to valve cover -115, 70 Duro, .674" ID x .103" Thk

1шт.

14

J906659

SEAL

- injector nozzle, 7 mm injector tip

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Water filter shutoff valve -111, 70 Duro, .424" ID x .103" Thk

1шт.

16

J918610

HOSE,19.05 mm ID x 51.00 mm

to Valve Cover Elbow, Replaces J915040 Hose 19.05 mm ID x 51.00 mm

1шт.

17

J919677

TUBE

- oil, rocker arm

1шт.

18

J914708

LOCKING PLATE

PLATE - locking, exhaust manifold

12шт.

19

J823921

GAUGE

- cylinder head, bolt length

1шт.
