(3-02) - FUEL INJECTION SYSTEM, 6TA-830 ENGINE

Запчасти Case IH 1670 (3-02) - FUEL INJECTION SYSTEM, 6TA-830 ENGINE (02) - FUEL SYSTEM

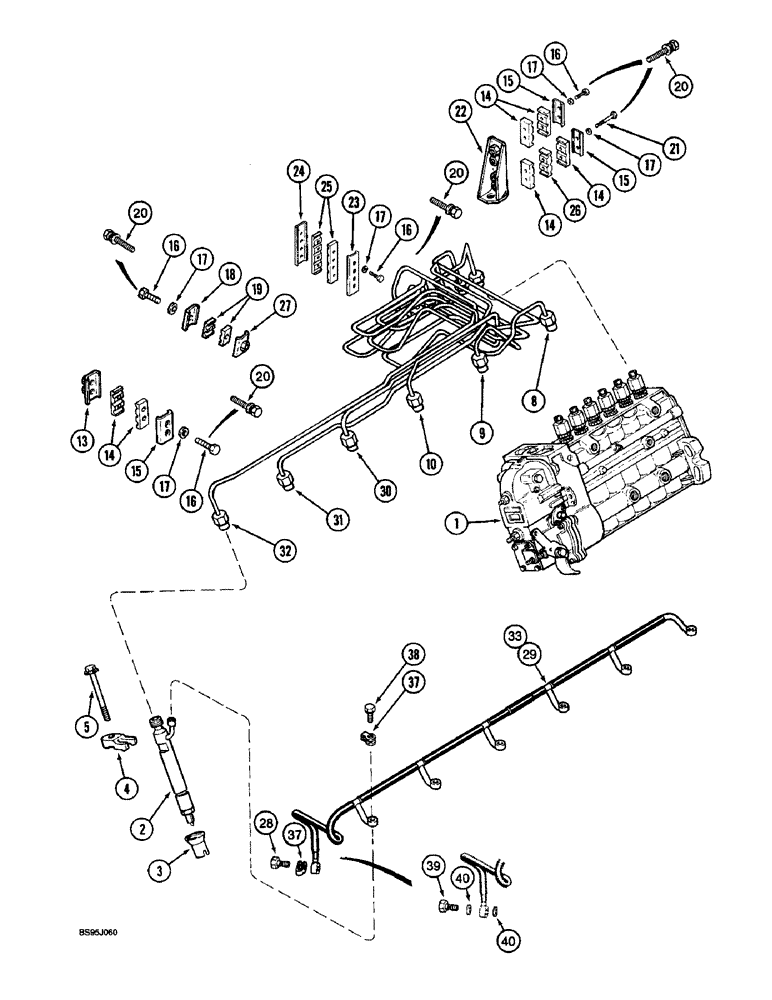

Схема запчастей Case IH 1670 - (3-02) - FUEL INJECTION SYSTEM, 6TA-830 ENGINE (02) - FUEL SYSTEM
17
14
14
20
31
22
27
15
14
24
23
21
17
40
5
28
29
20
16
17
14
2
37
19
40
9
15
1
4
8
25
16
30
20
10
37
20
3
17
15
13
32
26
33
18
17
39
38
16
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, new, see figure 3-6

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - see figure 3-8

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

4

J910279

CLAMP

- fuel injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 80 mm

6шт.

8

J910749

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel, No. 1 cylinder

1шт.

9

J910750

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel, No. 2 cylinder

1шт.

10

J910751

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel, No. 3 cylinder

1шт.

13

J917716

BRACE

BRACKET - fuel tube

1шт.

14

J917747

CLAMP

- fuel tube

6шт.

15

J904519

SUPPORT

BRACE - tube retaining

3шт.

16

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , If used Hex Hd, M5 x .8 x 20, w/LW

9шт.

17

J903723

WASHER

- flat, special, 6 x 10 x 1 mm, if used

11шт.

18

CURJ904711

CLAMP

BRACKET - fuel tube

1шт.

19

J917746

CLAMP

- fuel tube

2шт.

20

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , If used Hex Hd, M5 x .8 x 20, w/LW

9шт.

21

J917713

SCREW,Pan, #6 - 32 x 3/8", Gr 2

BOLT - hex, special, retaining

2шт.

22

J917776

BRACE

BRACKET - fuel tube

1шт.

23

J910686

BRACE

- tube retaining

1шт.

24

J917740

BRACE

- tube retaining

1шт.

25

J917749

CLAMP

- tube

2шт.

26

J917748

CLAMP

- fuel tube

1шт.

27

J917717

BRACE

BRACKET - fuel tube

1шт.

28

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special, if used M6 x 1 x 14.3

1шт.

29

J915695

MANIFOLD

- fuel drain, no longer used, for service order (1) J920595 manifold, Ref. 33, (1) J924726 check valve, Ref. 39, and (2) J918188 washers, Ref. 40

1шт.

30

J910752

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

31

J910753

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

32

J910754

FUEL TUBE

TUBE - fuel injector, No. 6 cylinder

1шт.

33

J920595

TUBE ASSY.

MANIFOLD - fuel drain

1шт.

37

J903380

SEAL

- connector

6-7шт.

38

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

39

J924726

BANJO BOLT

VALVE - check, replaces J916360 valve, if used

1шт.

40

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

- sealing

2шт.
