(6-58) - WHEELS, DRIVE

Запчасти Case IH 1670 (6-58) - WHEELS, DRIVE (03) - POWER TRAIN

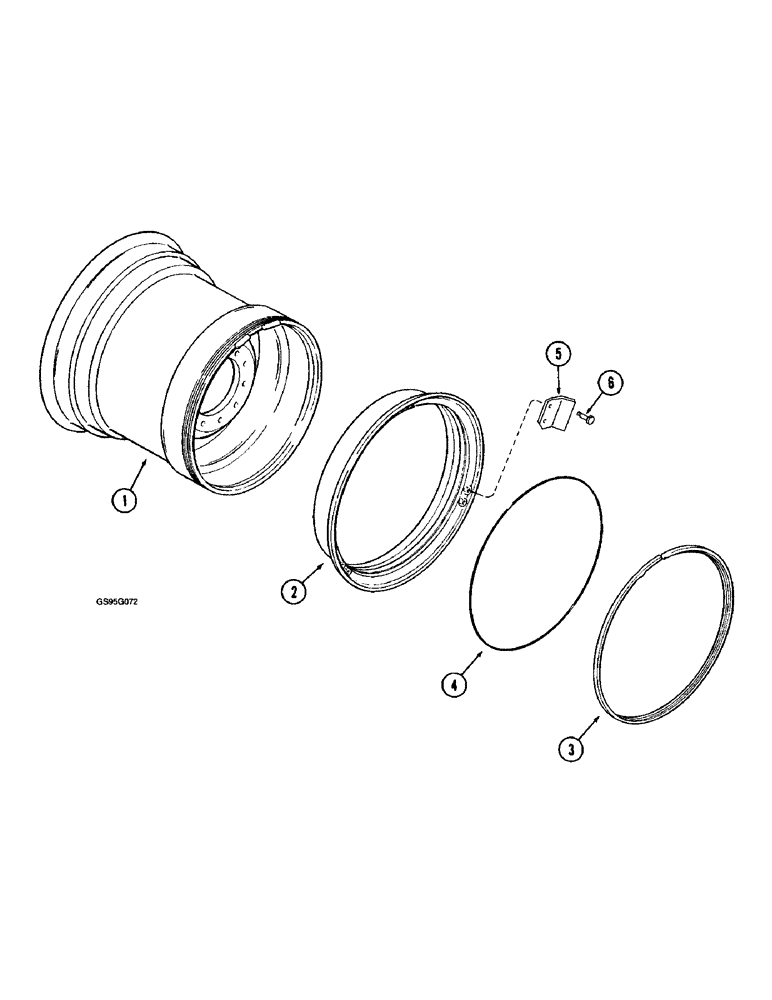

Схема запчастей Case IH 1670 - (6-58) - WHEELS, DRIVE (03) - POWER TRAIN
5
3
6
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

184470C1

WHEEL

- drive, for 30.5L x 32 tire, Includes: Ref. 2 - 6

2шт.

2

184471C1

WHEEL

- wheel, side

1шт.

3

184472C1

RING

- wheel, locking

1шт.

4

184473C1

O-RING,7mm Thk x 757mm ID, 65 Duro

M29.8 ID x .30 Thk, Wheel ring sealing

1шт.

5

184474C1

LARGE PLATE

PLATE - wheel ring

3шт.

6

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

- hex, 5/8 NC x 1 inch

6шт.
