(240) - CAB WINDOW GLASS DIMENSIONS, SERIAL NO. 7278 AND ABOVE

Запчасти Case IH 303 (240) - CAB WINDOW GLASS DIMENSIONS, SERIAL NO. 7278 AND ABOVE (90) - PLATFORM, CAB, BODYWORK AND DECALS

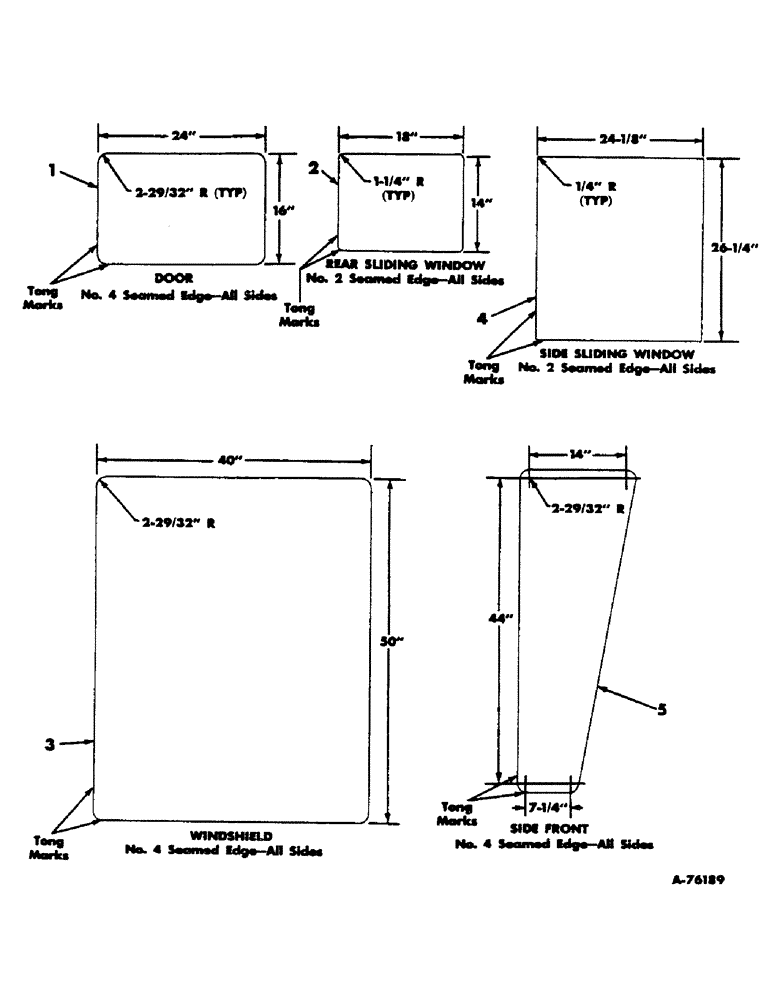

Схема запчастей Case IH 303 - (240) - CAB WINDOW GLASS DIMENSIONS, SERIAL NO. 7278 AND ABOVE (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
1
4
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

150974C1

WINDOW, rear sliding

2шт.

2

150973C1

WINDOW, side sliding

1шт.

3

150972C1

GLASS

WINDSHIELD

1шт.

4

150971C1

WINDOW, front side

2шт.

5

150967C1

WINDOW, door

1шт.

Выбрано товаров: 5
